PAGE 15
OM-8003 & 8004
Date Printed: Tuesday, February 08, 2005
Revision Date: 06-12-03

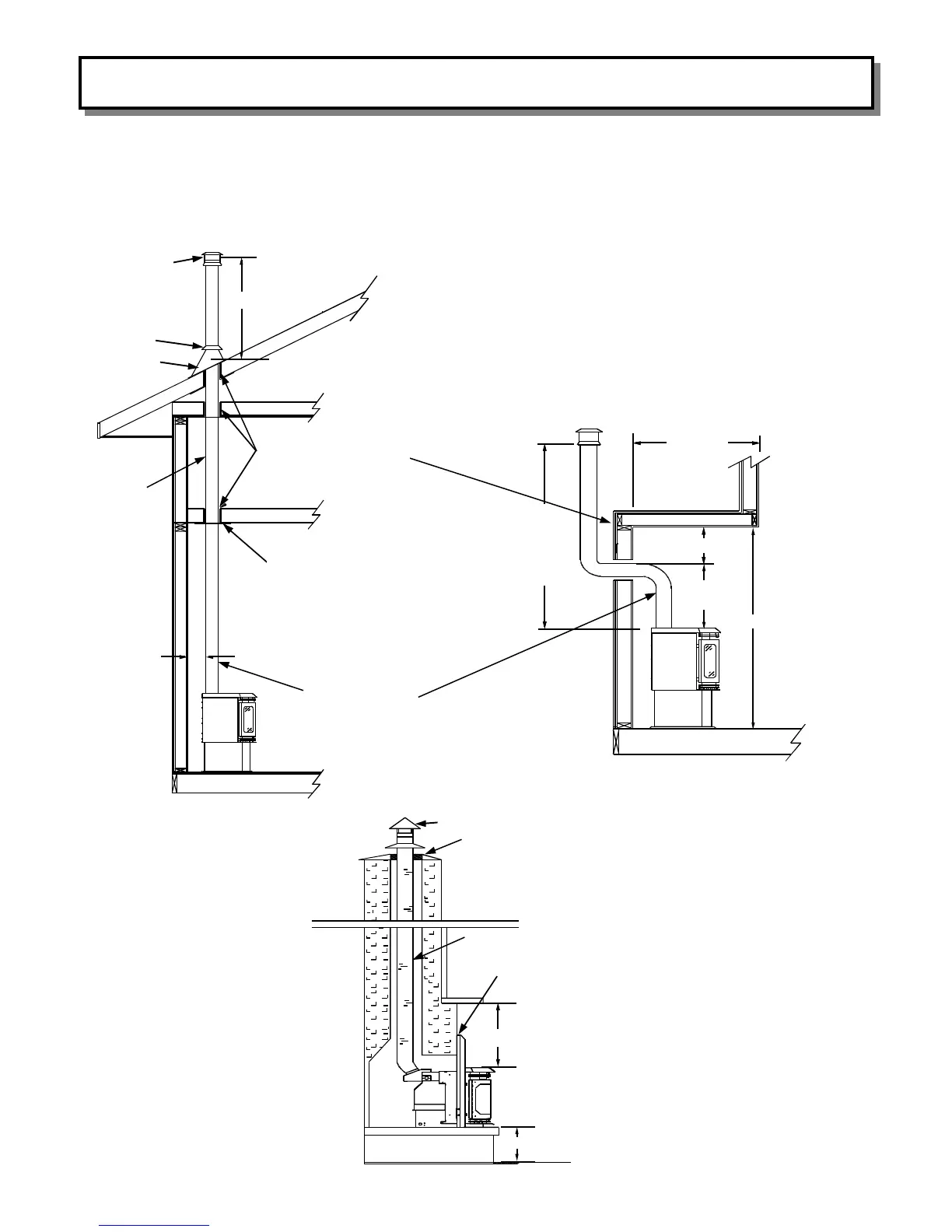

FLUE VENTING
WARNING: Always refer to current editions of local , provincial, state safety codes.
Please follow vent manufactures specifications for safe and efficient installation.
CAUTION: EACH OF THE VENT MANUFACTURERS HAVE THEIR OWN METHOD OF CONNECTION. DO
NOT MIX B-VENT FROM VARIOUS MANUFACTURERS B-VENT MUST BE USED WHEN PASSING
THROUGH A WALL, CEILING, OR ROOF.
Be Alert To The Danger Of High Temperature Surfaces.
Advise All Children & Adults That The Glass & Doors, Etc.
Cannot Be Touched During Or Soon After Operation,
To Prevent Injury, Persons Not Familiar With The Unit
Should Not Be Allowed to Operate It
Alcove minimum width 47”
54”
12” Min.
Recommended
6” Min.
Max. Alcove
Depth 30”
Min. Height
Must Be At
Least Twice
Of Lateral
Distance
Alcove Installation
See Chimney Manufacturer’s
Specifications & Local Building
Codes For Proper Clearances
B Vent Or Single Wall
If Single Wall Pipe Is Used, Wall
Thimble Must Be Used
Through The Ceiling
B Vent
Jack Flashing
Storm Collar
Rain Cap
Min 3ft
Pipe Collar
6” Min On
Single Wall
If distance is less than 6” from stove
apron to floor, floor protection with an
insulation value of at least R1.1 must
extend 18” out from, and expand the
entire width of the shroud.
Use Gas Vent Cap
Flue Must Be Sealed Around
Pipe At Top Of Chimney
Blaze King Requires The Chimney
To Be Relined.
(4” Aluminum Flex Pipe Is Sufficient)
Shroud Can Not
Touch Combustibles
18” Min.
6” Min.
