OCTOBER 16, 2007 21 DFG-100/200

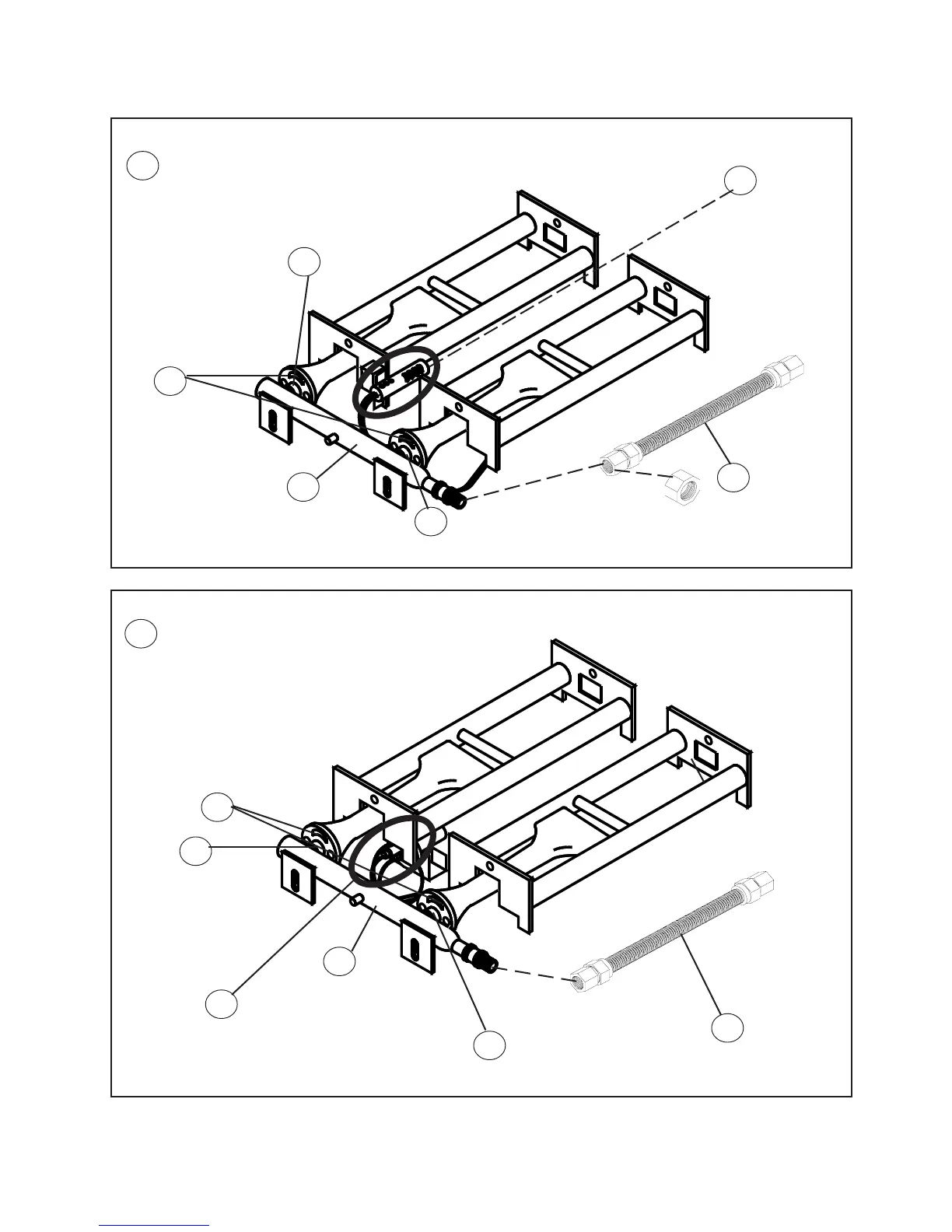

BURNER & PIPING, EXPLODED
15871
Manifold Assy
5
15871
Manifold Assy
5
STEEL TUBE BURNER, 18799
ON UNITS AFTER 01/86
1
STEEL TUBE BURNER, 19097
ON UNITS BEFORE 02/86
2
33249
Manifold Flex Tubing
6
90023
Manifold Flex
Tubing
7
90063
Air Shutters
3
3001
Locknut, for air shutters
4
3001
Locknut, for air shutters
4
90063
Air Shutters
3
3001
Locknut, for air shutters
4
3001
Locknut,
for air shutters
4
17515
Ignitor, w/
Bracket 18414
8
18584 Nat
or
18585 LP
Pilot Burner
9
