Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 23 DFG-100/200

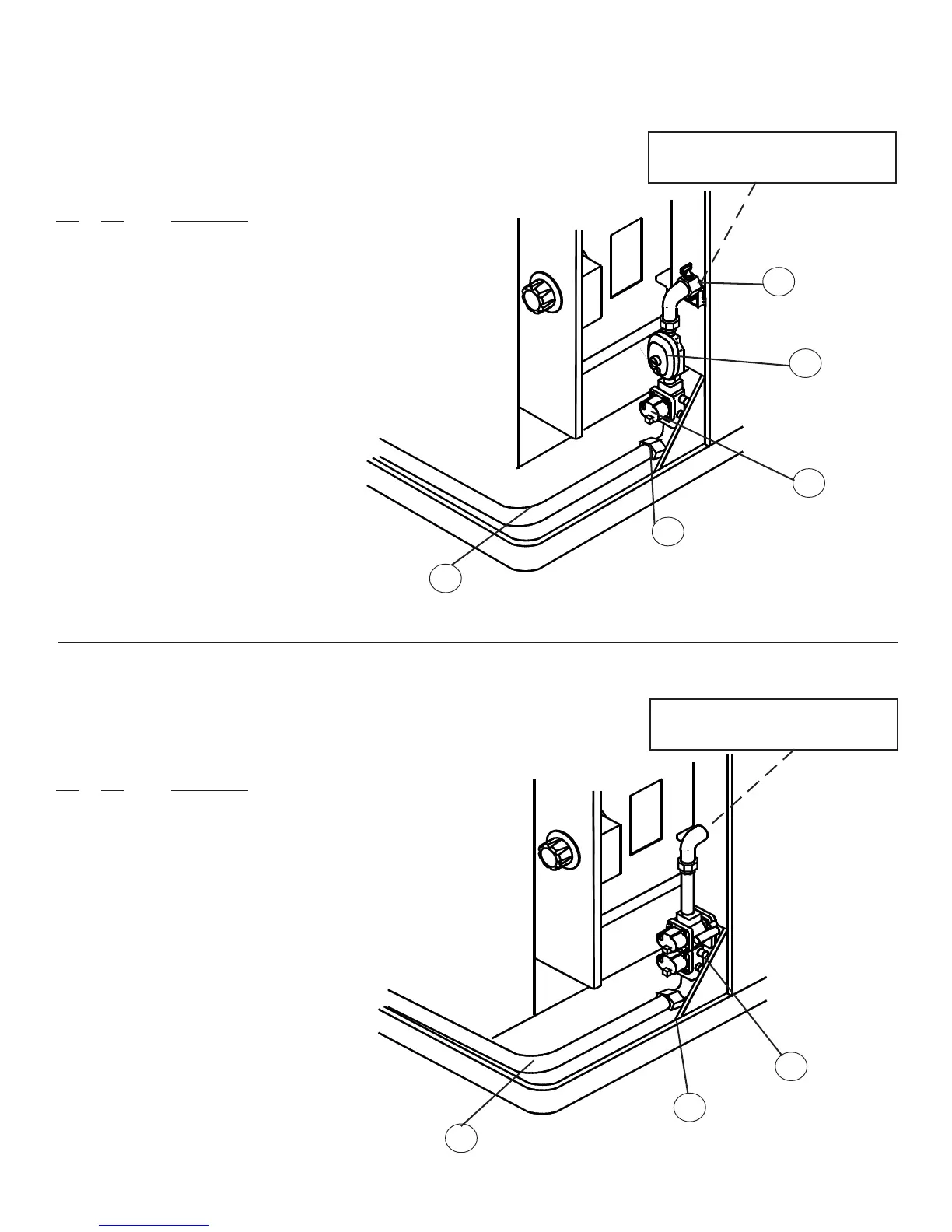

GAS STACK ASSY, UNITS BEFORE 07/84
Ref. Part
No. No. Description
1 20287 Solenoid Valve, Single
2 90013 Pressure Regulator, Nat
2 90020 Pressure Regulator, LP
3 19746 Ell, Union Elbow
17386 Stack Assy, Nat
17387 Stack Assy, LP
4 NLA Manual Gas Valve
5 90023 Supply Flex Tubing, for Manifold
16589 Thru Pipe Assy, 18 1/4" long- NLA
17106 Thru Pipe Assy, 17 1/8" long
10252 Union 1/2"
90023
Supply Tubing,
for Manifold
5
19746
Ell, Union
3
20287
Solenoid
Valve, Single
1
90013
or
90020
Pressure
Regulator
2
90025
Manual Gas
Valve
4
NOTE: THRU PIPE
CONNECTS FROM HERE.
90023
Supply Tubing,
for Manifold
3
20325 Nat
or
20275 LP
Solenoid Valve/
Pressure
Regulator
1
NOTE: THRU PIPE
CONNECTS FROM HERE.
19746
Ell, Union
2
Ref. Part
No. No. Description
1 20325 Solenoid Valve/Pressure Regulator, Nat 110V
1 20275 Solenoid Valve/Pressure Regulator, LP 110V
2 19746 Ell, Union Elbow
3 90023 Supply Flex Tubing, for Manifold
17107 Gas Stack Assy, Nat
17108 Gas Stack Assy, LP
16589 Thru Pipe Assy, 18 1/4" long
17106 Thru Pipe Assy, 17 1/8" long
10252 Union 1/2"
GAS STACK ASSY, UNITS BETWEEN 07/84 AND 02/86
