7.5.
7.6.
Display Backlight
Your PowerCost Monitor™ has a backlight that can be used to see the screen
in dimly lit conditions. To turn the backlight on, press the LIGHT button
located on the top of the display unit. The screen will light up in blue and
remain lit for approximately 5 seconds.

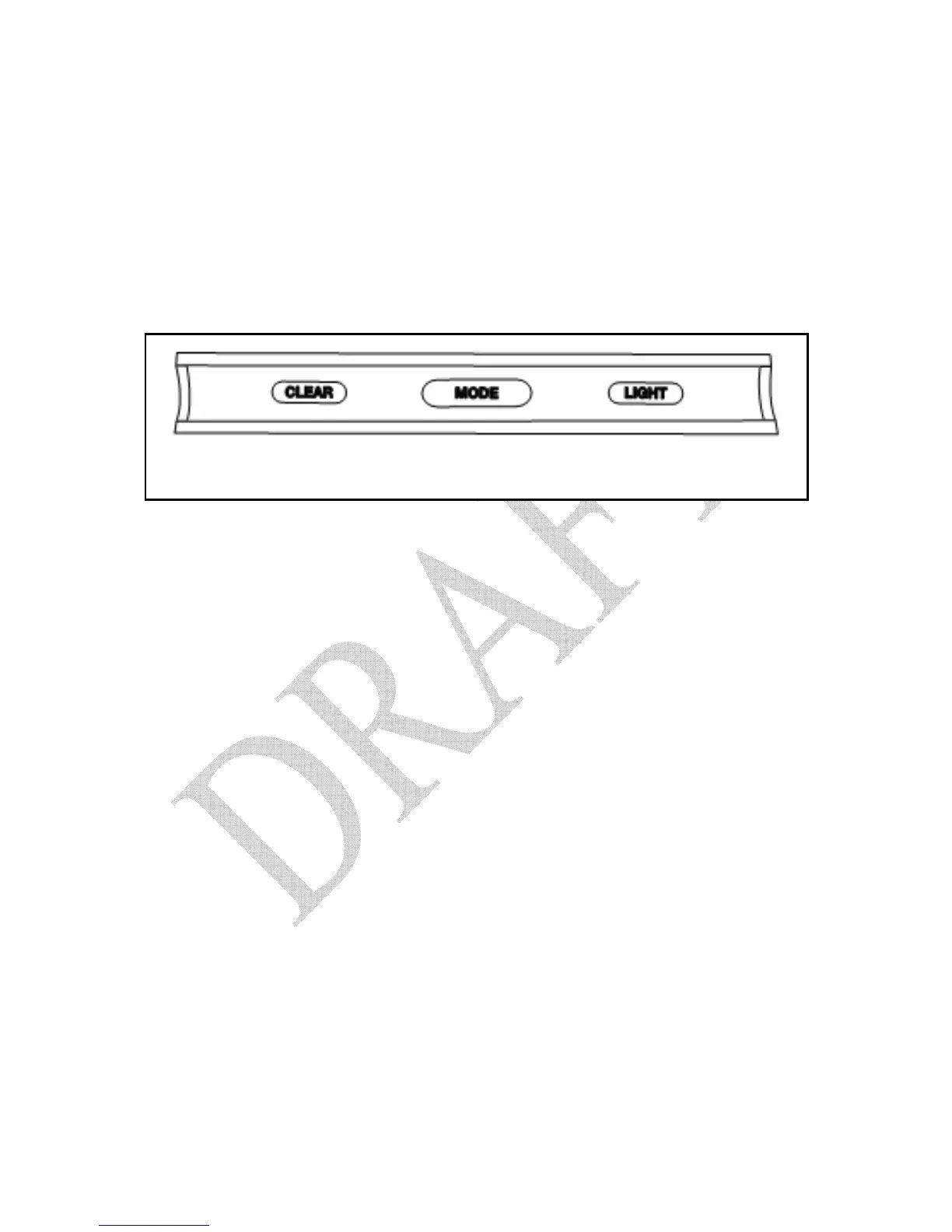

Figure 7.5 – Display Backlight Button
Restoring Default Values
To restore your PowerCost Monitor™ to its original settings you’ll need a
sharp pencil or straightened paper clip. Press and hold the SET button on the
back of the Display Unit. While pressing the SET button, insert the pencil or
paper clip into the RESET hole, also located on the back of the Display Unit,
and then release the SET button. You will hear several fast beeps and then see
the screen below. You will need to repeat the steps in Sections 7.2 and 7.3 to
enter the correct time and electricity rate information.
