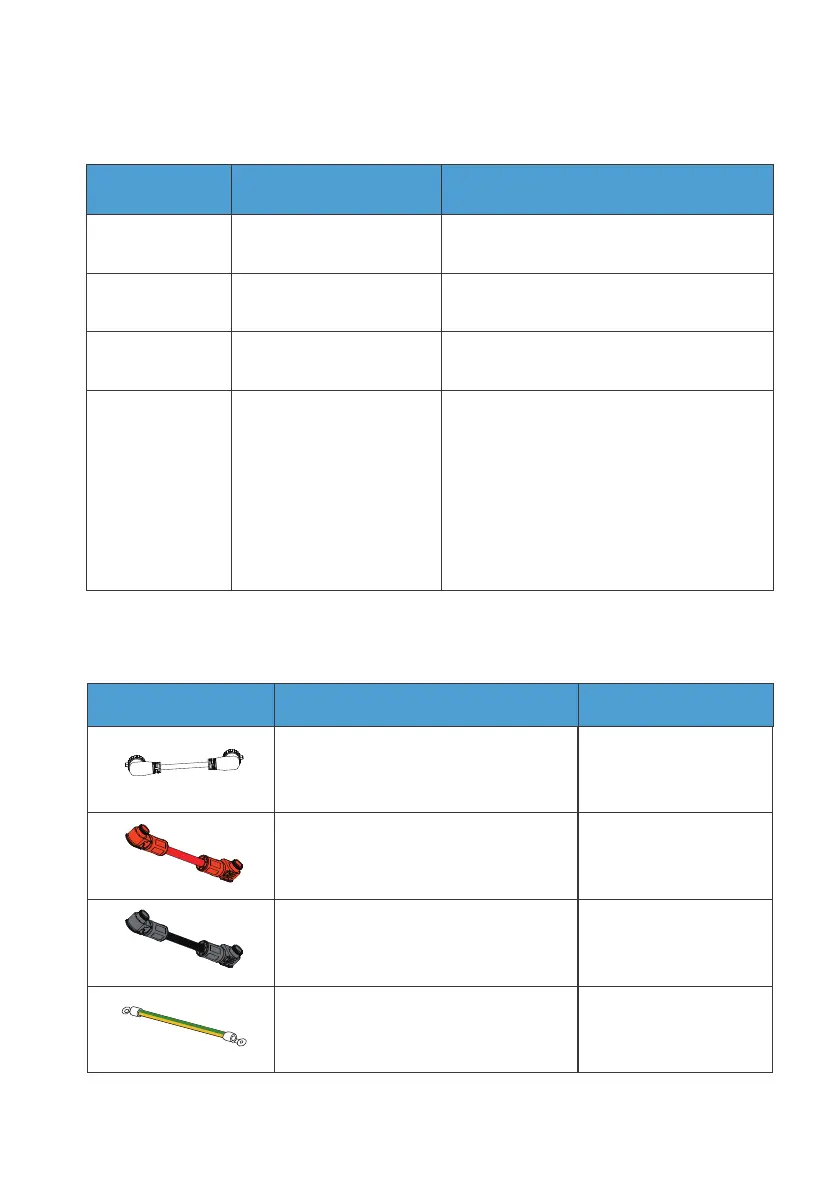

4.4 LED Indicators
Light
OFF B500 is not started. Can operate the circuit breaker.
Can not operate the circuit breaker.
Can not operate the circuit breaker.
B500 is running.
B500 is shutting down.
B500 is not running.
ON
Flash at 0.5Hz
Flash at 1Hz
Description Note
If all indicators are flashing, the battery
module is temporarily unavailable and is
restoring, please wait patiently.
If it lasts for more than 1 hour, please
contact an authorized dealer or our
company.
If a single indicator flashes, the B500 is in
a fault condition. Please contact an
authorized dealer or our company.
Table 4-5
4.5 Battery Cables
Picture Description Interface (connect to)
Communication cable
Red battery expansion cable (Positive)
Black battery expansion cable (Negative)
Grounding cable
BAT+ terminal 2
BAT- terminal 2
Grounding port
Table 4-6 Battery Cables
LINK PORT 2 of
the inverter
JUST POWER ON 31
