6.4 Stacking the Units
Step 1: Place the base on the ground and adjust the height of leveling feet so that
the base stands stably on the ground. Don’t forget to tighten the nuts to secure the
leveling feet.
Step 2: Mark the drilling positions with tape and marker. Drill holes with the M10
electric drill and insert M8 expansion bolts(Self-tapping screws for wooden walls).
Note: If you are working with a wooden wall, simply mark the positions and use M8
self-tapping screws to secure the unit directly onto the wall.
Step 3: Move the B500 battery pack to the base. Two people are required to transport
the B500. Align the bumps on the battery with the notches on the base to secure
the battery in place.

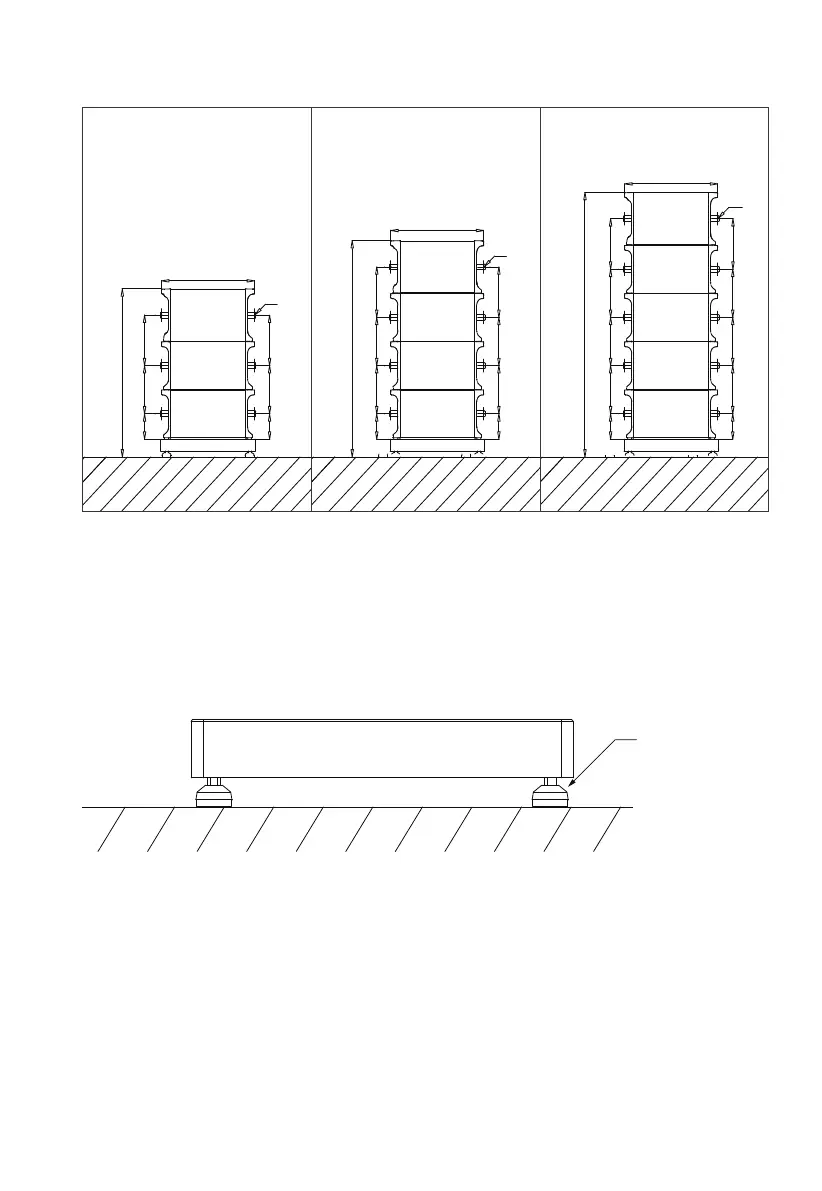

Fig. 6-3 (Unit: in)
Ground
The height of 4
leveling feet can
be adjusted.
Fig. 6-4
( 3 layers) ( 4 layers) ( 5 layers)
6.751 in
6.751 in
12.795 in
12.795 in 12.795 in
13.385 in
13.385 in
6.751 in 12.795 in 12.795 in 13.385 in 6.751 in 12.795 in 12.795 in 12.795 in 13.385 in 6.751 in 12.795 in 12.795 in 12.795 in 13.385 in
6.751 in
12.795 in 13.385 in
44.606 in
57.402 in
70.157 in
Ø0.315 in
Ø0.315 in
Ø0.315 in
24.724 in
24.724 in
24.724 in
