7 - Troubleshooting
• Loosen set screw using allen key (counter-clockwise)
• Turn laser diode until the correct angle is reached on the work
piece or ruler. Use a work piece for the alignment. Affix the
work piece to the work center using clamps.
• Re-tighten set screw using allen key (clockwise)
Only carry out the following steps when
the laser angle is not correct

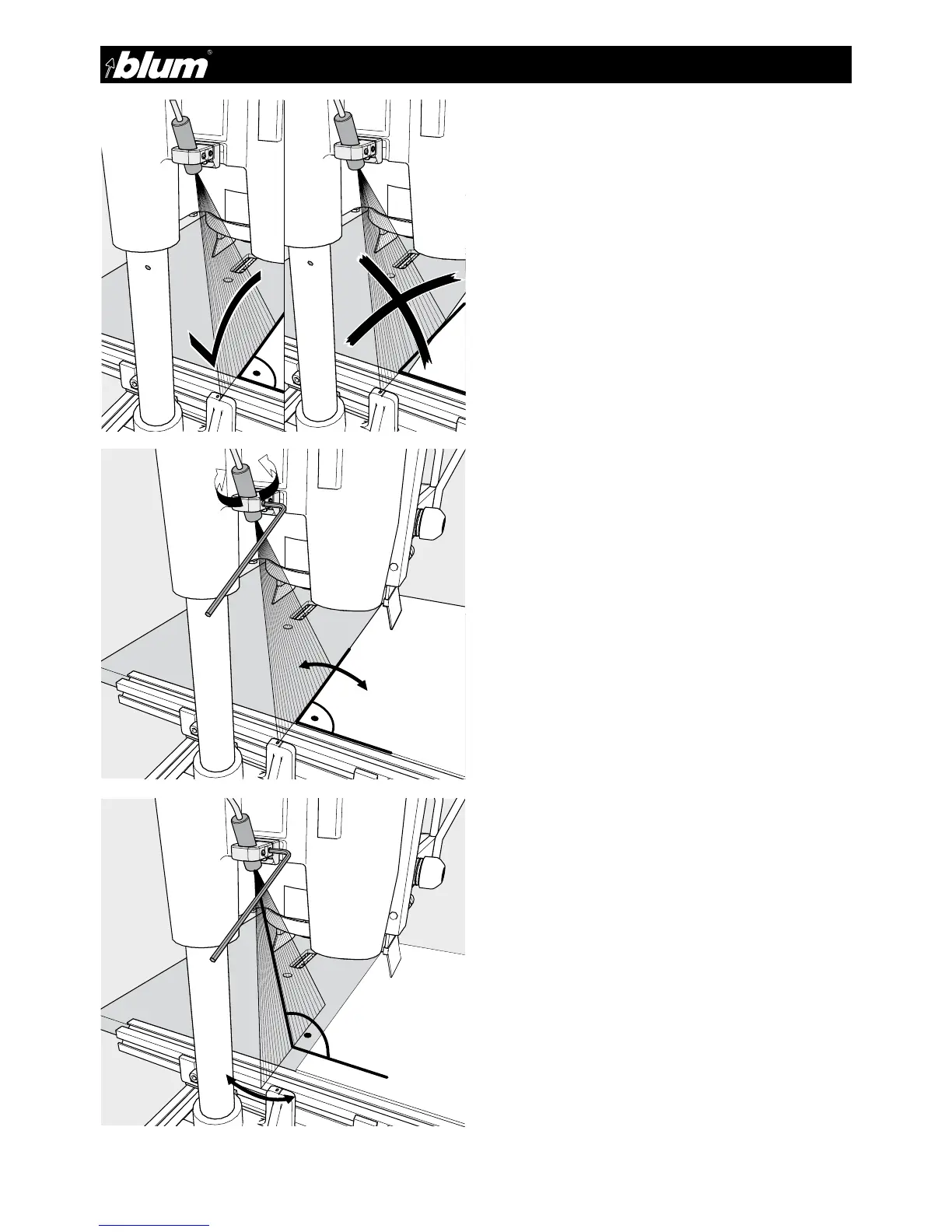

Adjusting the laser angle
Laser beam is not perpendicular
Only carry out the following steps when the laser is not perpen-
dicular
The laser beam is not perpendicular when it has moved from
the zero position due to the stroke movement
• Loosen set screw using allen key (counter-clockwise)
• Move laser diode until the laser beam is perpendicular
• Re-tighten set screw using allen key (clockwise)
Adjusting the laser angle
Only carry out the following steps when
the laser angle is not correct
• Loosen set screw using allen key (counter-clockwise)
• Turn laser diode until the correct angle is reached on the work
piece or ruler. Use a work piece for the alignment. Affix the
work piece to the work center using clamps.
• Re-tighten set screw using allen key (clockwise)
