Find your cockpit dimensions
BMC Retailers are equipped with an online sizing resource to determine the ideal frame size,
cockpit suggestions, and assembly guidelines.
Sizing tool - https://b2b.bmc-switzerland.com/tools/timemachine-sizing

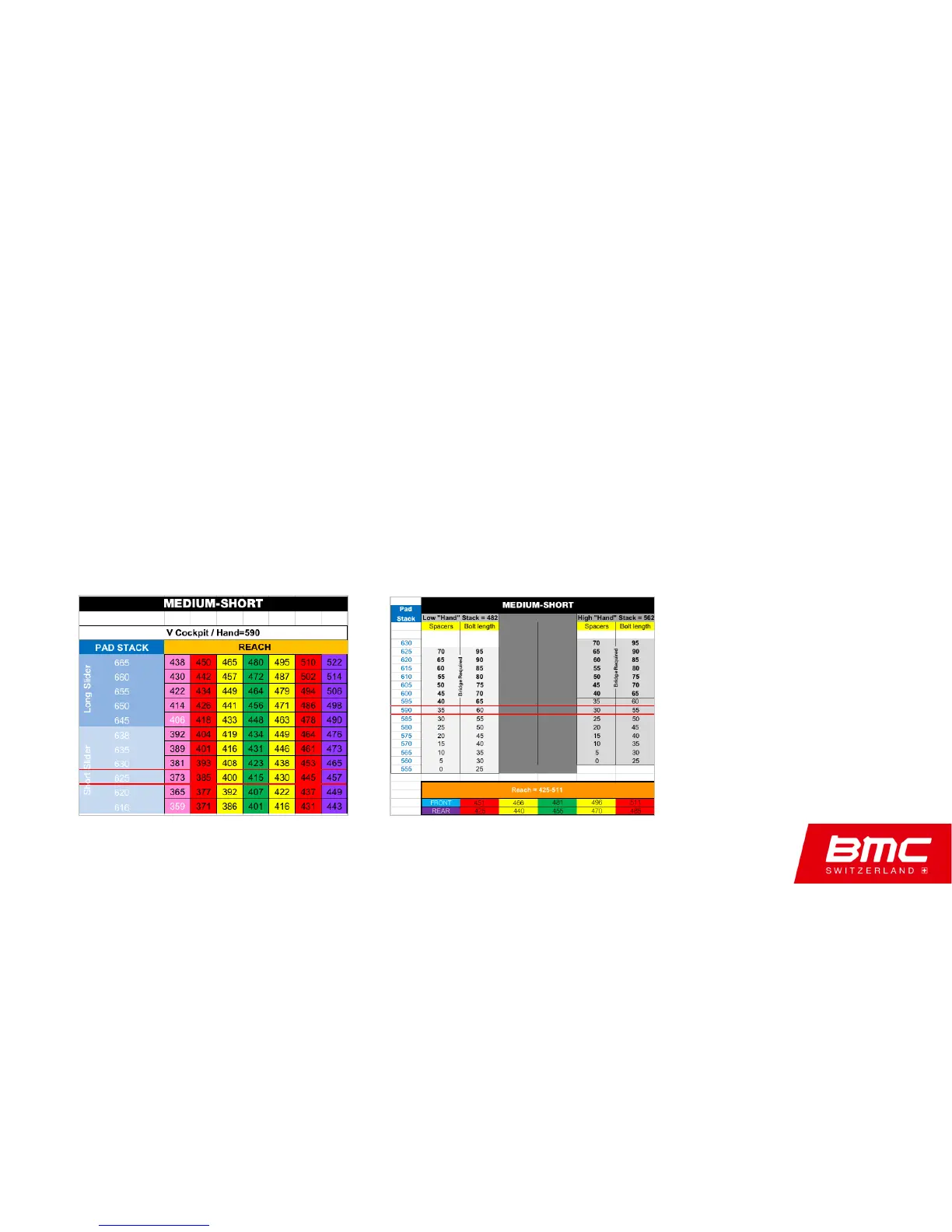

Examples of the BMC Dealer B2B online fit tool
Bridge Required
Bridge Required
V-Cockpit
Flat-Cockpit
9
11
Table of Contents
Table of Contents
3
General Assembly Notes and Warnings
4
Tools and Materials
5
Sizing & Fit
6
Prioritize Your Performance
7
Find Your Cockpit Dimensions
8
Pad Stack & Reach
9
P2P Configurations
11
Triathlon Front-Mount Seatpost + Storage Box
12
Time Trial Rear-Mount Seatpost (no Storage Box)
13
V-Cockpit Vs Flat Cocpkit
14
Flat-Cockpit Configuration
15
Seatpost Configuration
16
Frame Assembly
17
Rear Seatpost Configuration
18
Front Seatpost Configuration
19
Electronic Junctions, Wires & Battery
20
Headset / Fork Components
21
Fork Installation
22
Headset Assembly
23
Headset Adjustment
27
Brake Assembly & Installation
28
Brake Components
29
Brake Installation
30
V-Cockpit Assembly
31
V-Cockpit Components
32
V-Cockpit Assembly – Extension Brackets
34
Pre-Cutting the Cable Housings
36
V-Cockpit Assembly – Base Bar
36
Brake Booster Assembly & Brake Setup
39
Brake Booster – What Is It?
40
Brake Booster Components
41
Brake Housing & Cable Installation
42
Pre-Cut Brake Housing Lengths
43
Brake Caliper Setup
49
Right Hand Front Brake Assembly
50
Quick Pad – What Is It?
53
Quick-Pad Assembly Guideline
54
Finishing Assembly – V-Cockpit Extensions
58
Flat-Cockpit Assembly
64
Flat-Cockpit Components
65
Flat-Cockpit Assembly – Base Bar
66
Finishing Assembly – Flat-Cockpit Extensions
67
Finishing Assembly – Flat-Cockpit Di2
70
Finishing Assembly – Di2 Junction Box
71
Finishing Assembly – Di2 Junction & Battery
74
Finishing Assembly – Multi-Tool
75
Finishing Assembly – Flat-Cockpit Mechanical
76
Fit & Finish: Seatpost / Extensions
77
Seatpost and Extensions
77
Finishing Assembly – Rear Mount Seatpost
78
Finishing Assembly – Seatpost
79
Adjustable Dropouts & Derailleur Hanger
83
Finishing Assembly – Adjustable Dropout & Hanger
84
BMC Timemachine Resources
86
Retailer-Friendly Packaging
87
