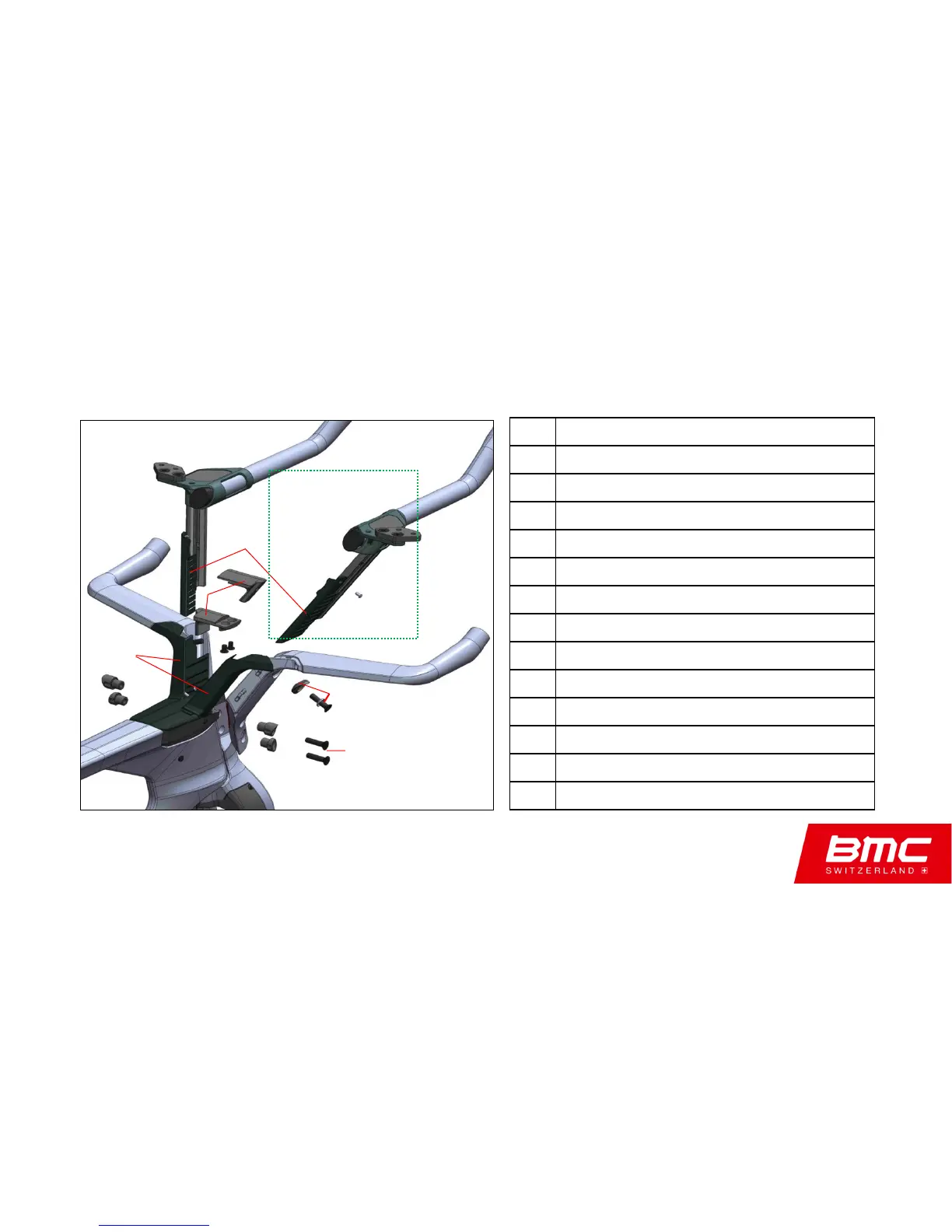

V-Cockpit Components
1 V-Covers (L&R)
2 Bridge (L&R)
3 Bridge fixation bolts (x2)
4 V-Covers (L&R)
5 Slider fixing bolt - bolt washer & frame mount
6 Lateral fixing nuts (threaded) – Upper & Lower
Upper nut - deep
Lower nut - shallow
7 Lateral fixing nut (non-threaded)
Upper nut - deep
Lower nut - shallow
8 Lateral fixing bolts (x2)
Upper bolt – long
Lower bolt – short
2
3
4
5
7
6
1
Slider sub-assembly
8
