BMC Timemachine - Finishing Assembly - Flat-Cockpit Extensions

Finishing Assembly – Flat-Cockpit Extensions

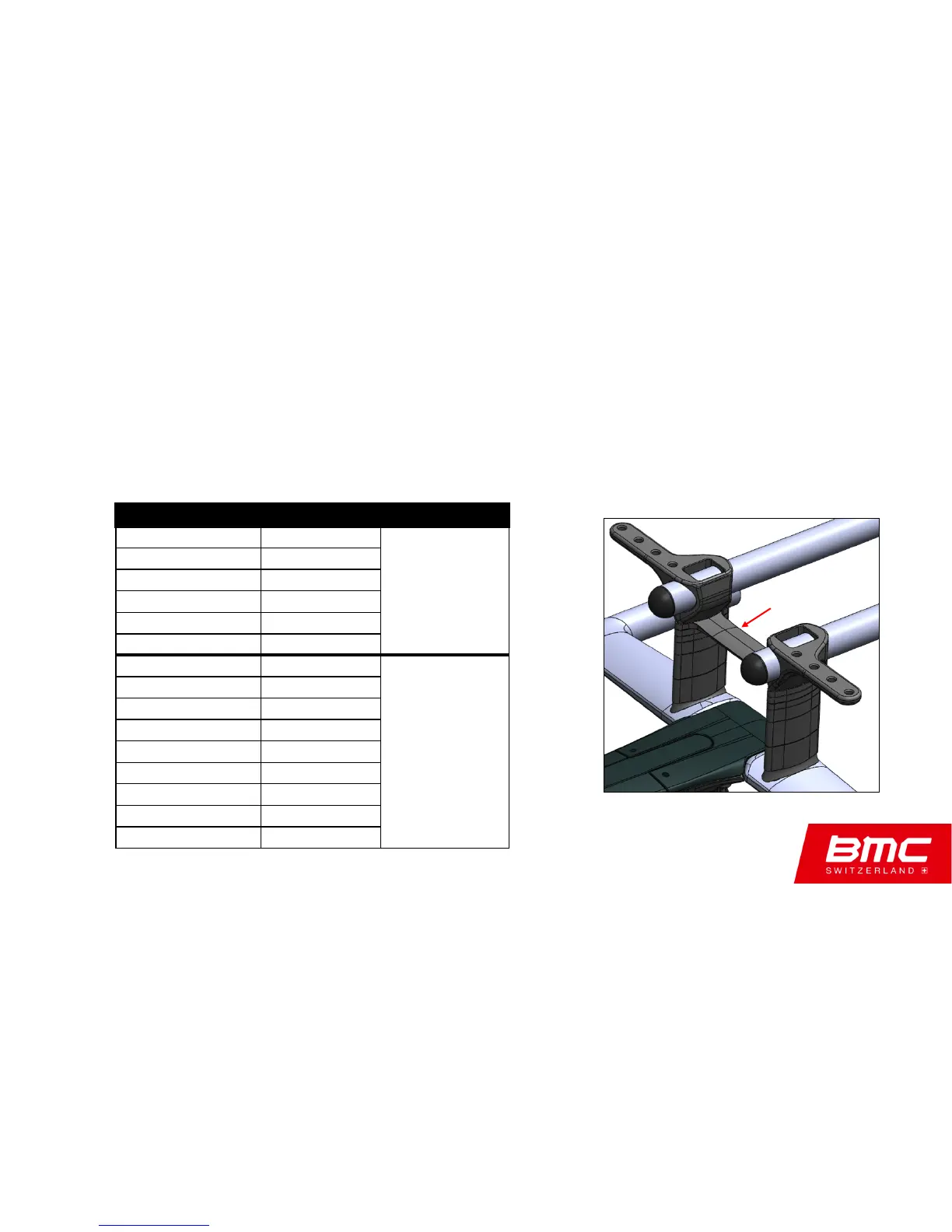

1. Determine necessary “pad stack” height and create required
spacer and bolt length combination
Spacer Altitude (mm) Bolt Length (mm) Bridge Required?
70 95
YES
65 90
60 85
55 80
50 75
45 70
40 65
NO
35 60
30 55
25 50
20 45
15 40
10 35
5 30
0 25
Bridge
