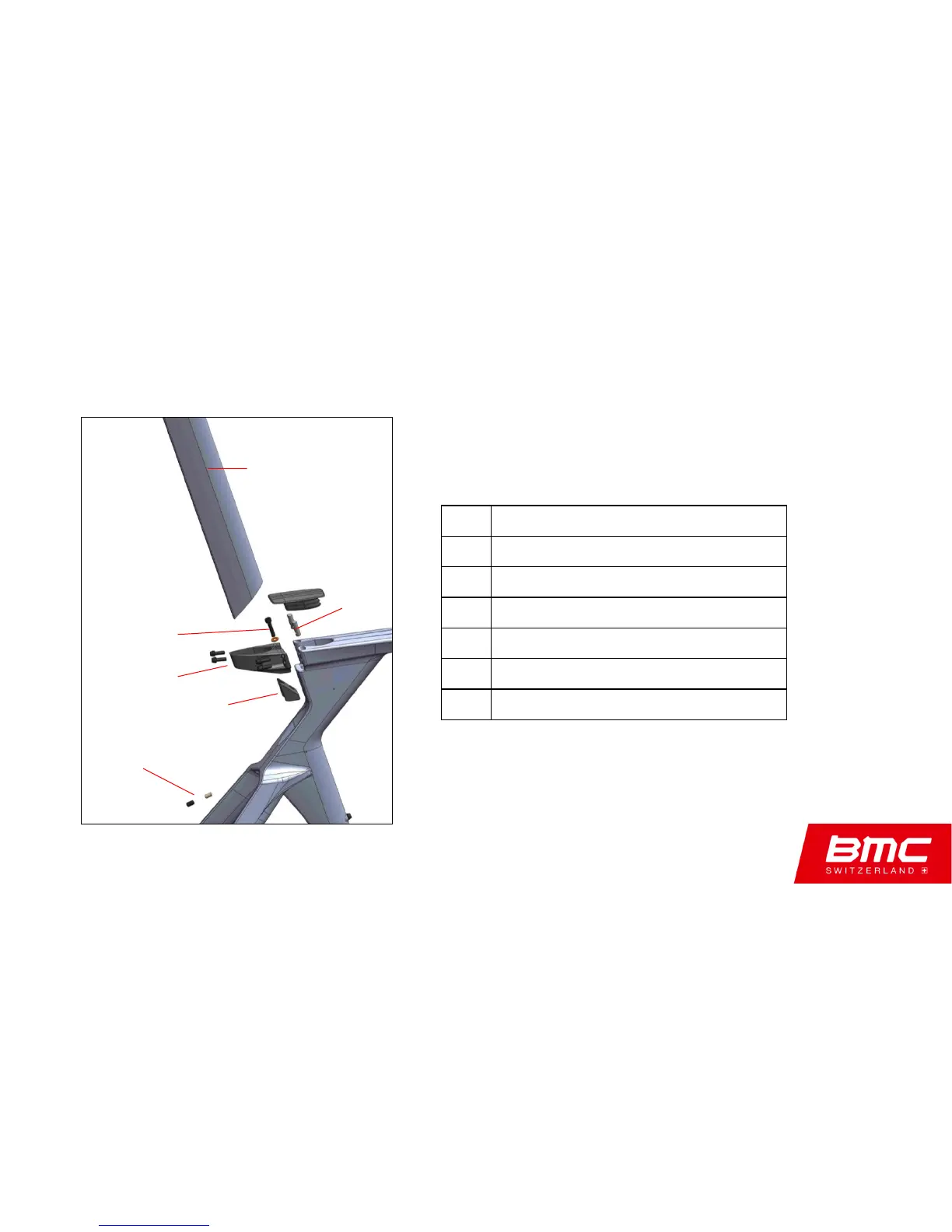

Rear Seatpost Configuration
1 Seatpost
2 Cover – forward mount
3 Seatpost Clamp Cylinder (x2)
4 Seatpost Counterclamp Bolt & Washer
5 Seatpost Clamp (Rear) & Bolts (x4)
6 Seatpost Counterclamp
7 Seatpost ‘Play-Killer’ & Bolt
1
2
4
6
3
5
7
