Headset Adjustment
Each bike or frame is delivered with one Headset
Adjustment Tool, enabling adjustment of the
Headset Bolt on an assembled bike (when cockpit/
cables are mounted).
Headset Bolt
Adjustment Tool

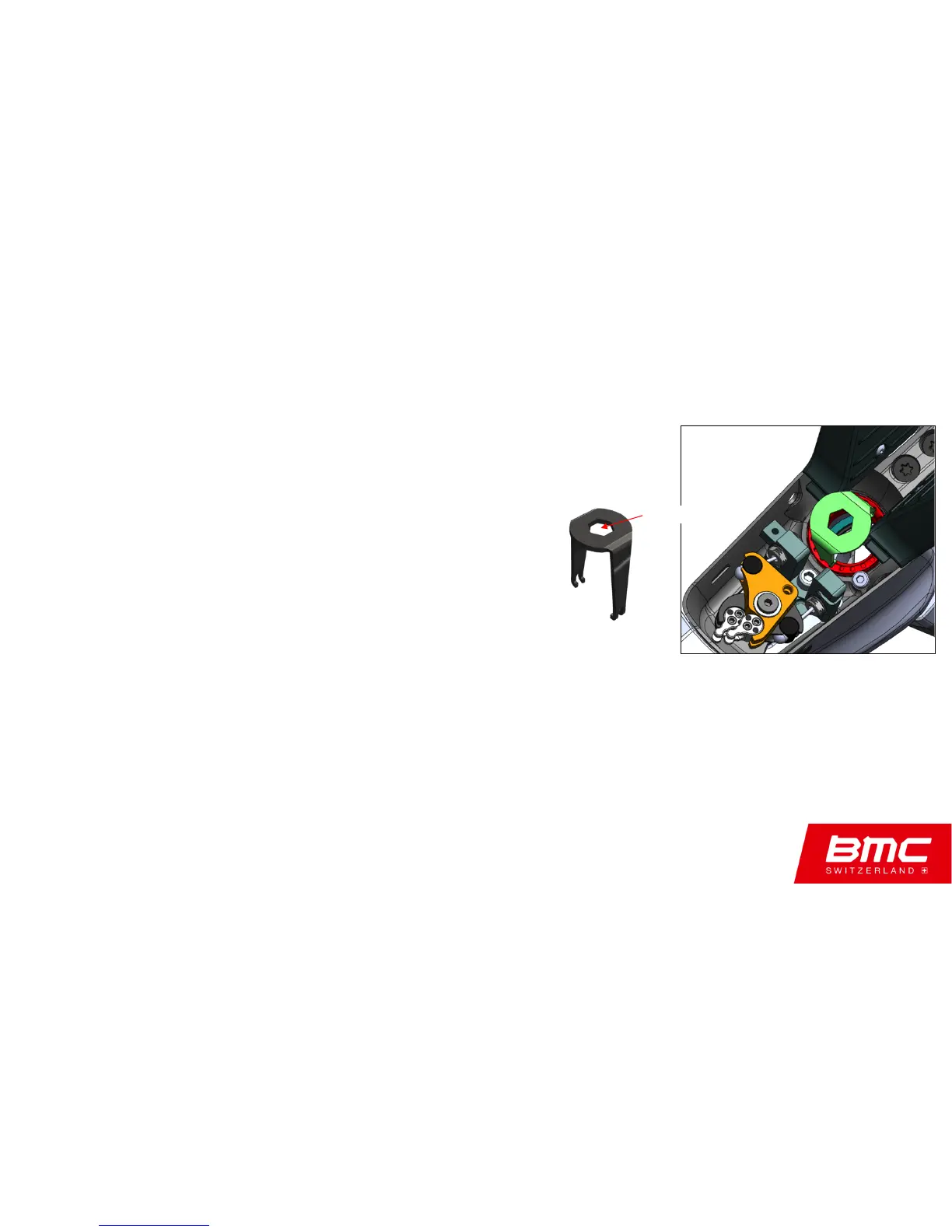

To adjust headset:
1. Unscrew the Stopper Bolt until clear of the Headset bolt
2. Insert the Headset Bolt Adjustment Tool
3. Turn clockwise (using a 10mm allen key in the tool)
4. Align Headset Bolt indent with the Stopper Bolt
5. Tighten the Stopper bolt to 4Nm
10mm Allen Key
