Brake Installation
1. Mount the Brake Bosses to the fork and the bottom of the
chainstays using thread locker and tighten to 6Nm
2. Mount the pre-assembled Brake Arms (L & R) to their
front/rear-specific locations using grease
3. Tighten Mounting Bolt to 6Nm

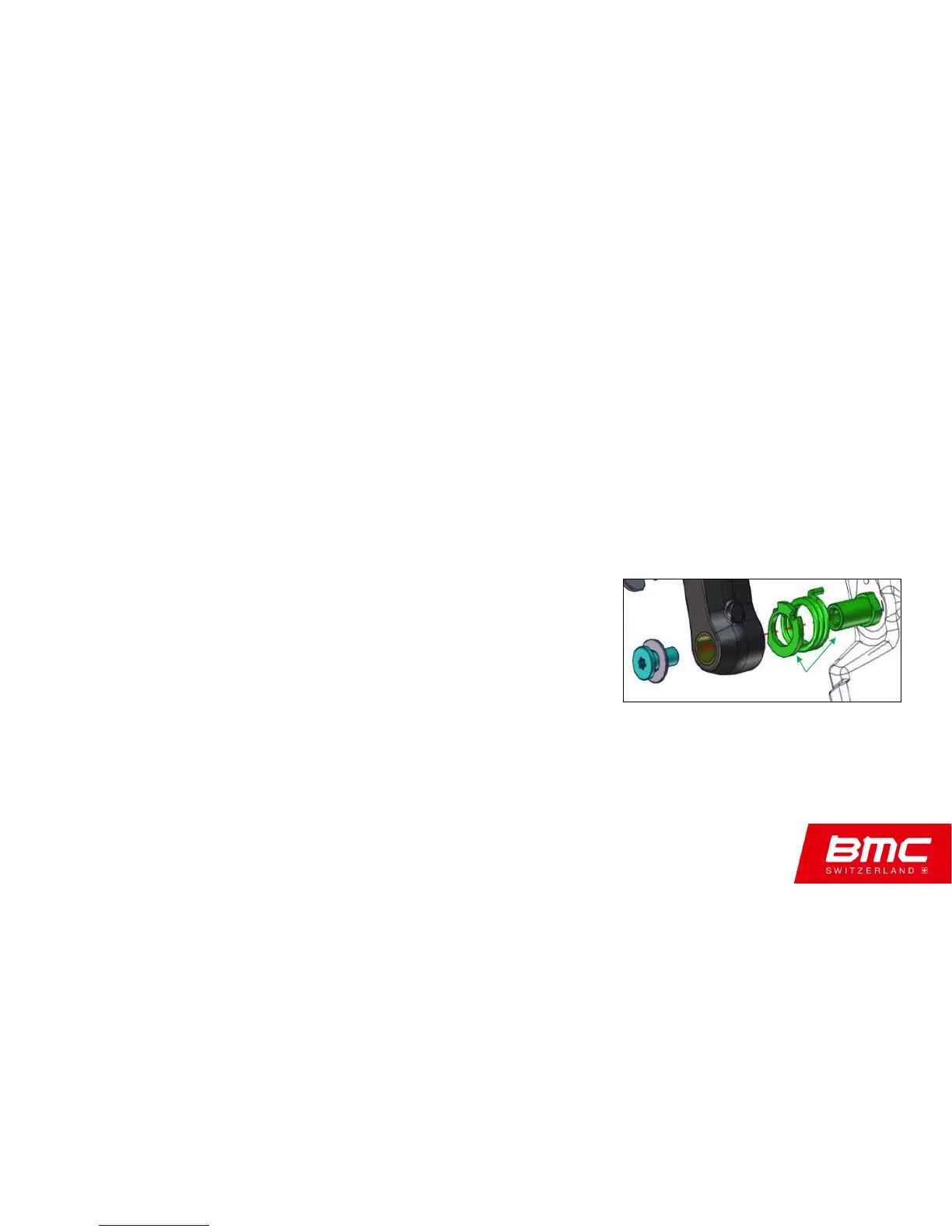

Mounting Bolt & washer > Brake Arm > Tension Plate > Return Spring > Brake Boss
Step 2
grease
