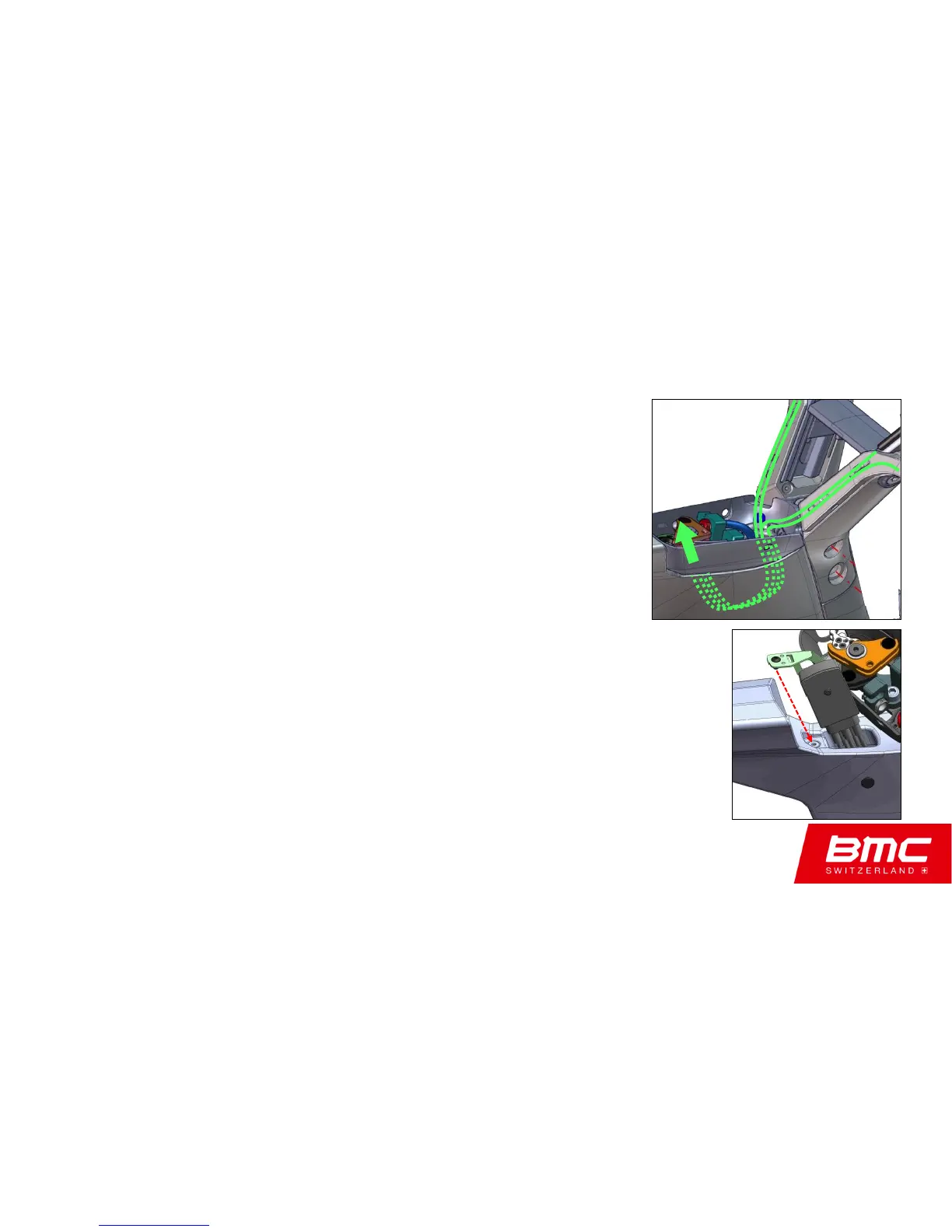

Finishing Assembly – Di2 Junction Box

1.  Di2 wires will route from the cockpit through the Headset

Bolt and enter the frame

2.  Route the wires from the frame up through the Di2 port

in the top tube (hidden under Brake Booster)

3.  Connect the shifting wires to the Junction Box

4.  Mount the Junction Box to the Junction Box Mount

5.  Install the Junction Box Mount to the frame

Step

1 & 2

Steps

3 - 5
