BMC Timemachine - Di2 Cable Routing

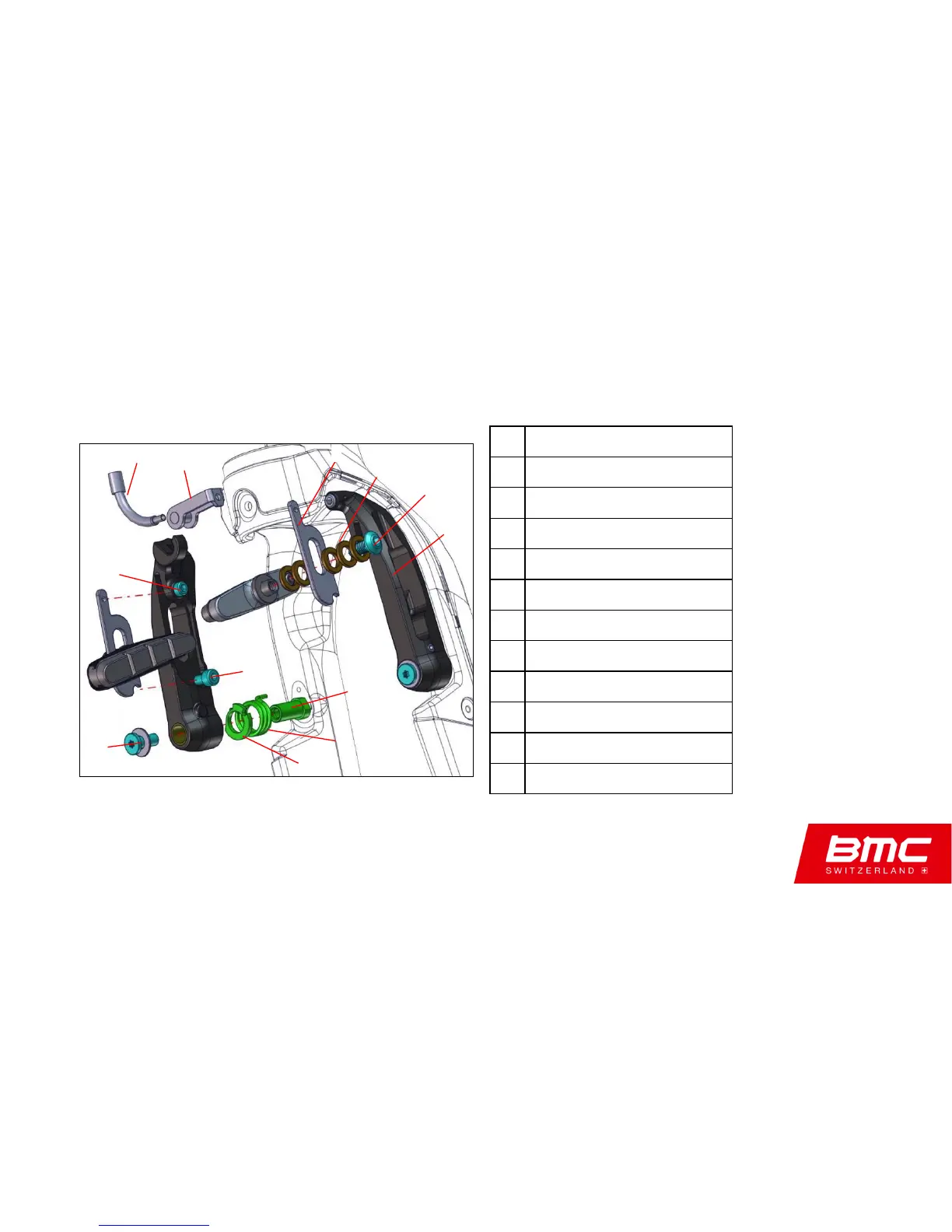

Brake Components
1 Cable pipe
2 Pipe holder
3 Quick pad holder
4 Quick pad spacers (x5)
5 Brake cartridge bolt
6 Brake arm (L & R)
7 Brake boss
8 Return spring
9 Tension plate
10 Mounting bolts
11 Quick pad fixing bolt - lower
12 Quick pad fixing bolt - upper
1
2
3
4
5
6
7
8
9
11
10
12
