V-Cockpit Assembly – Base Bar

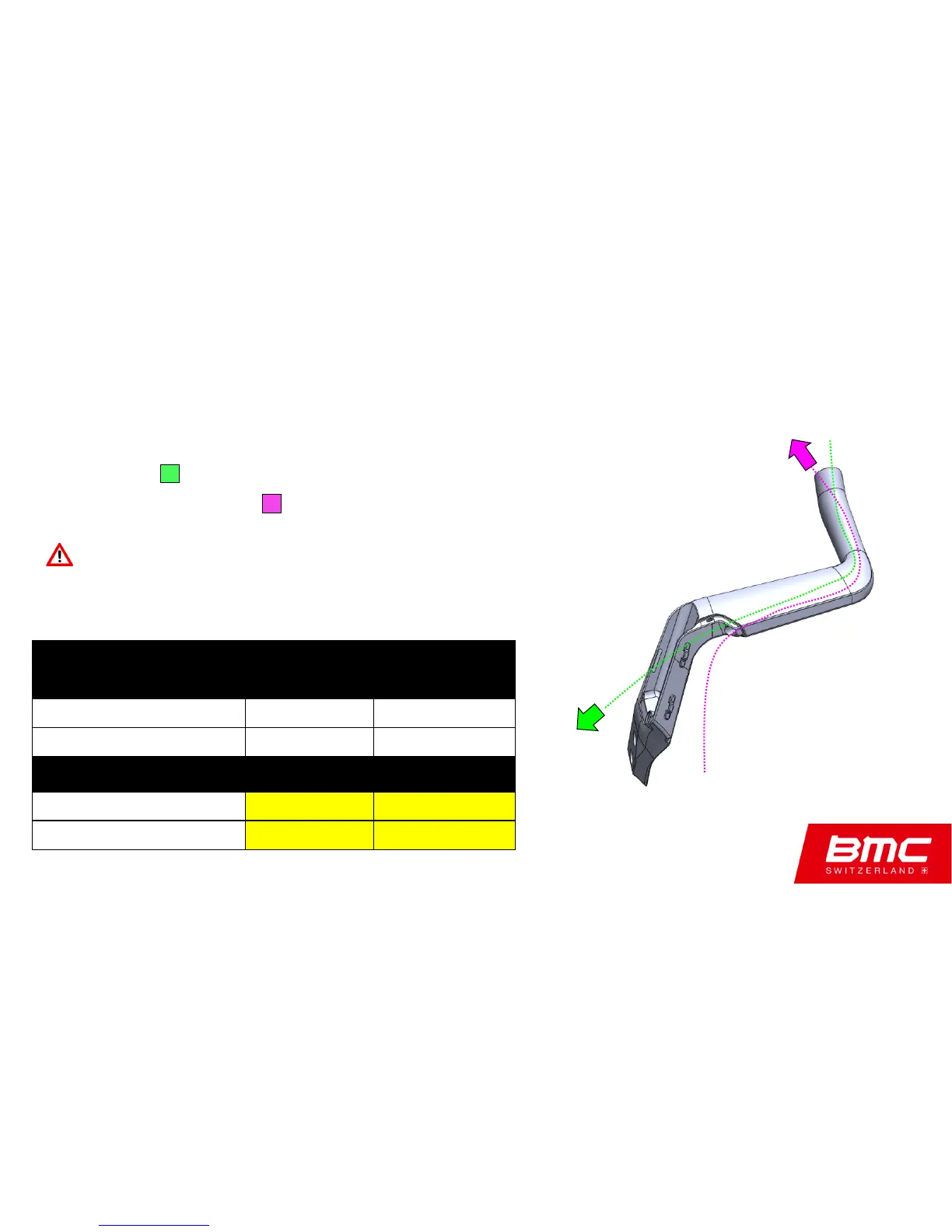

Prepare the Base Bar (R & L) by pre-mounting:
1. Di2 wires
2. Brake cable housing
Note: Failure to install Di2 wires before brake housing significantly
increases the difficulty of this process
Orientation
Pre-cut length (mm)
Shimano SRAM
EU: Rear Brake (R) 390 380
EU: Front Brake (L) 400 390
Right hand front brake assembly AUS / NZL / GB ect. (see page 50/51)
Rear Brake (L) 410 400
Front Brake (R) 420 410
Pre-cutting the cable housings:
To Next Page
