BMC Timemachine - Hingefork and Headset Assembly; Hingefork and Headset Parts Overview; Hingefork and Headset Assembly Procedure

1 Extension
2 Reach plate fixing bolts
3 Reach plate (optional)
4 Cover plate
5 Slider fixing bolts
6 Extension bracket
7 Extension clamp
8 Extension clamp bolt
9 End plug
10 Slider - short (x2) & long (x2)

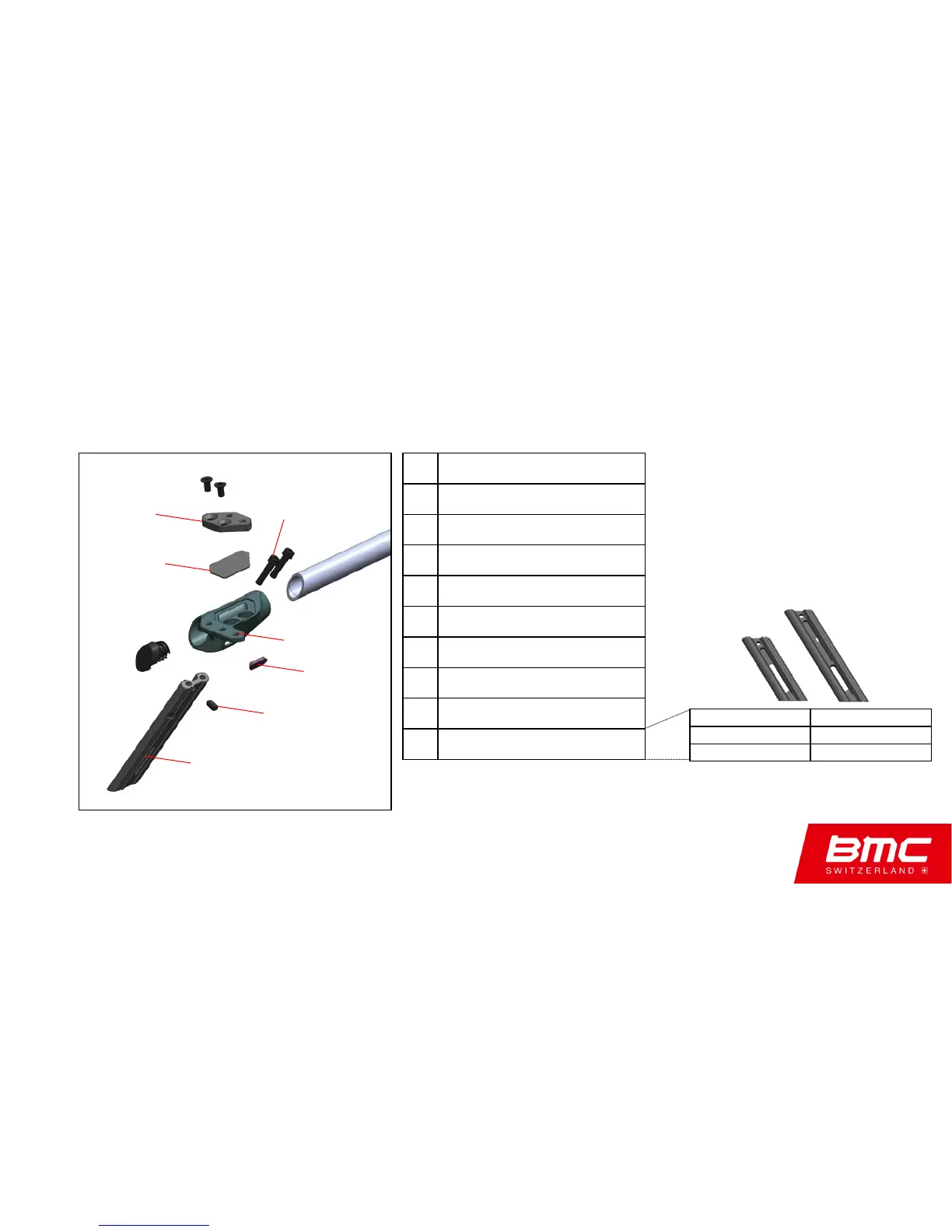

V-Cockpit Components
Slider sub-assembly (right)
1
2
3
4
5
6
7
8
9
10
Dimension Stack range
SHORT: 90mm 0 – 22mm
LONG: 124mm 29 – 50mm
Use the optional reach plate (3) for 22-29mm of altitude range.
