YH-600B Pro User Manual V3.0
49 / 88

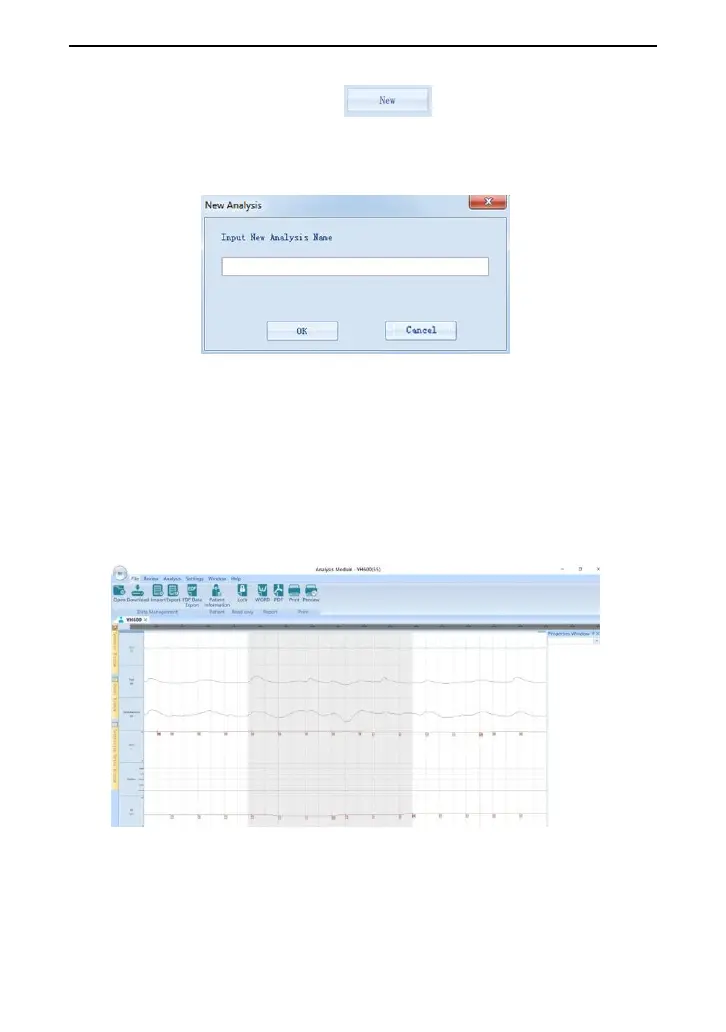

(4) Click the “New” button , to pop up the “New
Analysis” interface, as shown in Fig. 2-12.
Fig. 2-12
(5) After input the name of the new analysis, click “OK”, to pop up
the interface as shown in Fig. 2-13. The interface can display
the waveforms or values of all recorded signals. The left of the
interface is the channel title bar.
Fig. 2-13
Note: The software can support to open four patient data
simultaneously at most.
