YH-600B Pro User Manual V3.0
67 / 88

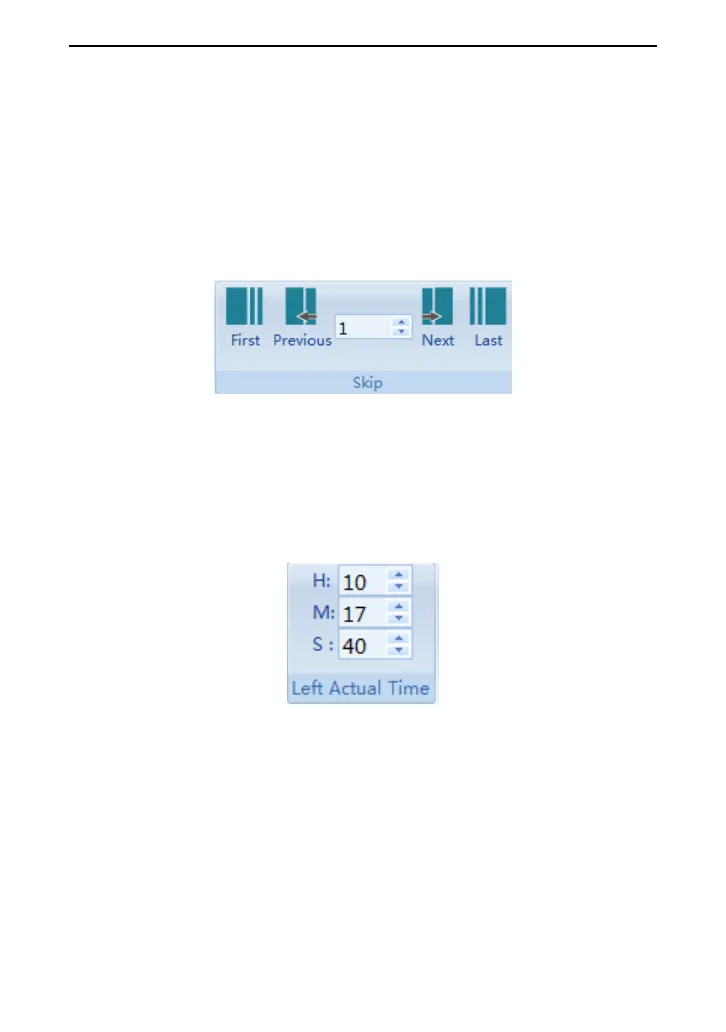

button in the skip bar and observe the record waveform and
parameters of this period. Click “First”, “Previous”, “Next” and
“Last” to reach the corresponding epoch, or input the epoch to
directly locate it, as shown in Fig. 2-36.
In the waveform display interface, the user can click the left and
right arrows on the computer keyboard to realize the screen skip.
Fig. 2-36
2.4.2.3 Left Actual Time
This column shows in real time the corresponding time on the left
side of the current screen, as shown in Fig. 2-37.
Fig. 2-37
2.4.2.4 Left Offset Time
This column shows in real time the offset time from the moment
we start recording to the current left screen time, as shown in Fig.
2-38.
