Cardboard Actuator Template
The cardboard template is a guide for the actuator arm in Full-Open and
Full-Close positions. The template is simply 2 x card board strips with a screw
joining the 2 together. The screw is acting as your pivot point where the
actuator arm will attach to the secondary bracket.
This is an easy way to determine the best position to drill your bracket
mounting points for your post and gate brackets and take the guess work out
of installation.
Clamping your brackets rst is always recommended.
You may need to change the bracket or design a new one that best suits your
application.
Each arm guide has a mark measured from the screw.
The screw represents the position of the secondary post bracket pivot.
The outer lines marked on the guide represents the position of the
gate bracket pivot.

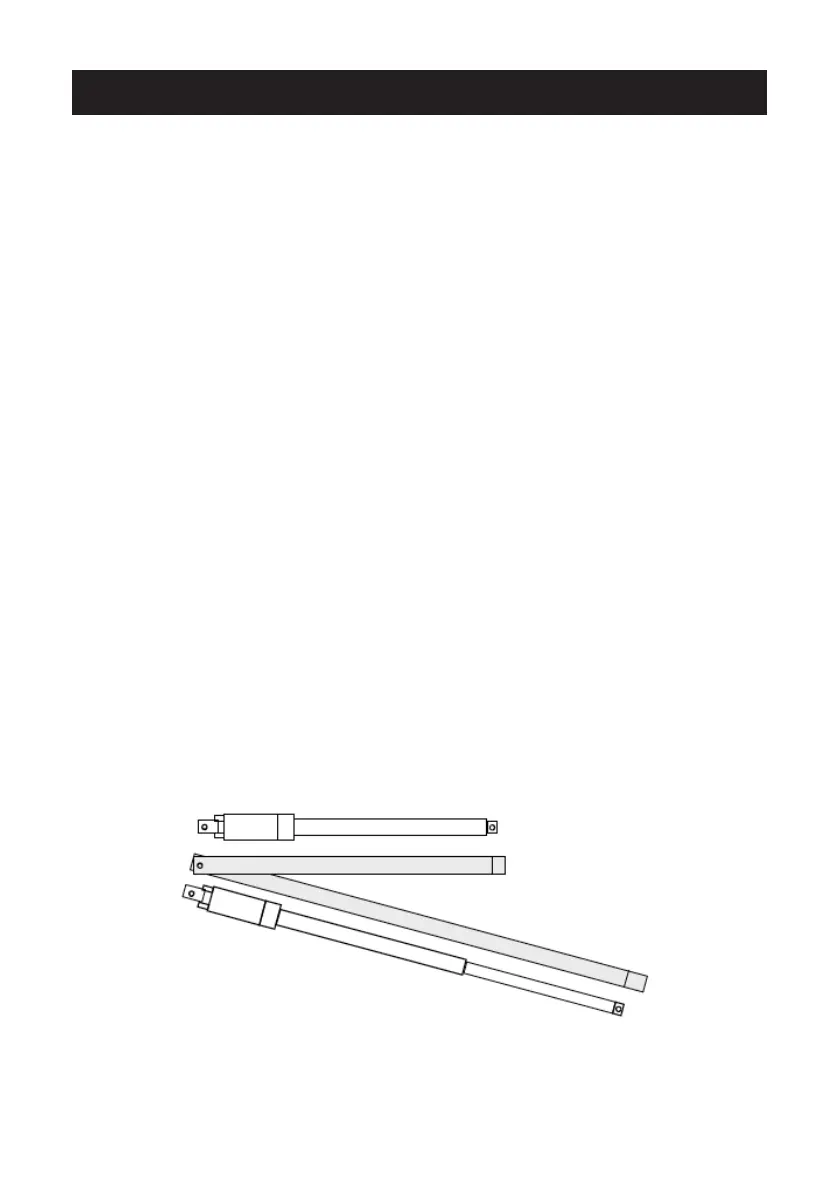

Short template – Arm fully retracted
Long template – Arm fully extended
Short Template
LongTemplate
