Transformer Wiring Installation
The Transformer can be relocated up to 50mtrs from the control box. You
MUST install the transformer via a RCD to avoid injury from shock as per local
government electrical requirements. Always switch off mains power when any
work is being carried out on or around the gate installation. Always ensure
that the transformer is properly protected from water and dampness.
We recommend a minimum 2.5mm x 2 core cable. Connect the male plug of
the transformer into the 240Vac power socket and connect the output cable
(16Vac) into the EGA-04 control board.
TRANSFORMER MUST PLUG INTO A
240VAC POWERPOINT
DO NOT HARDWIRE
OR THIS WILL VOID WARRANTY
Refer to the separate coloured
“Wiring Guide” for a step-by-step way
to install the control box

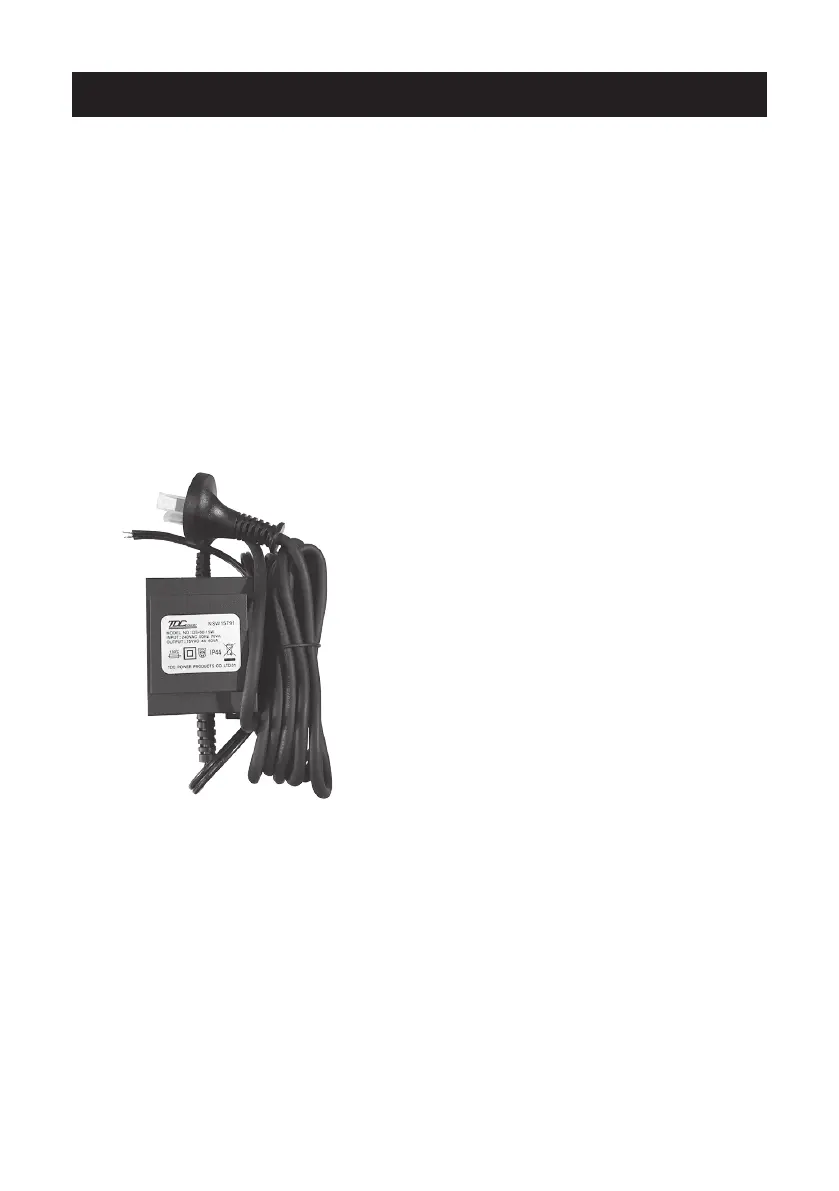

Transformer
