Installing Primary and Secondary post brackets
Now that you have your gate and post bracket points marked along with your
arm pivot point, you can now go ahead and attach these brackets into position
(clamp rst if preferred).
Once you have secured the primary post bracket (or round post bracket) you
can then slide the secondary bracket between the middle gap of the primary
wall bracket. Do not tighten the nylon nut yet.
Note: these brackets should be checked on a regular basis.

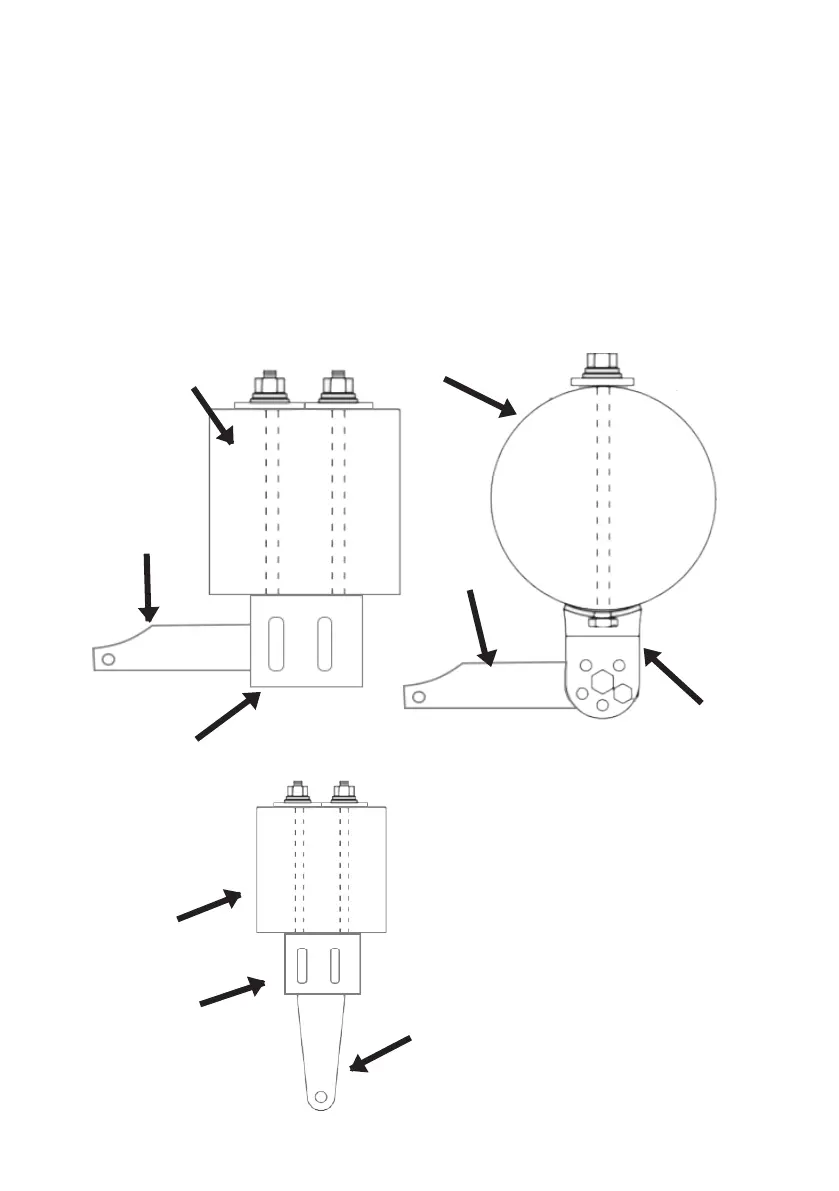

Square Post
Round Post
Primary Post
Bracket
Secondary
Push to open
Bracket
Round Post
Bracket
(optional
extra)
Note: Bracket/mounting
points may need to be
modied from the standard
instructions due to your
post and hinge setup.
Contact your dealer if you
require further assistance.
Secondary
Push to open
Bracket
Square Post
Primary Post
Bracket
Standard
Secondary
Bracket
Option A
Rear post mounting
Option B
Inside face mounting
