Installing the Gate Stop
Double Gates
Installing the rubber gate stop is required
to ensure proper alignment of the two
gates and for them to have a solid push
onto the stopper in the full-cosed position.
Note: you will be supplied with 2 metal
tabs in a double kit which can be used if
your gates don’t hit the stop due to the
gap between the gates and rubber stop.
Single Gates
The gate should either stop onto a post
in the closed position, or you can use
the rubber gate stop and place it onto
the post allowing the gate to have a solid
push in the closed position. If using the
rubber stop, make sure you place it on the
same level as the actuator arm to avoid
bending and twisting of the gate.

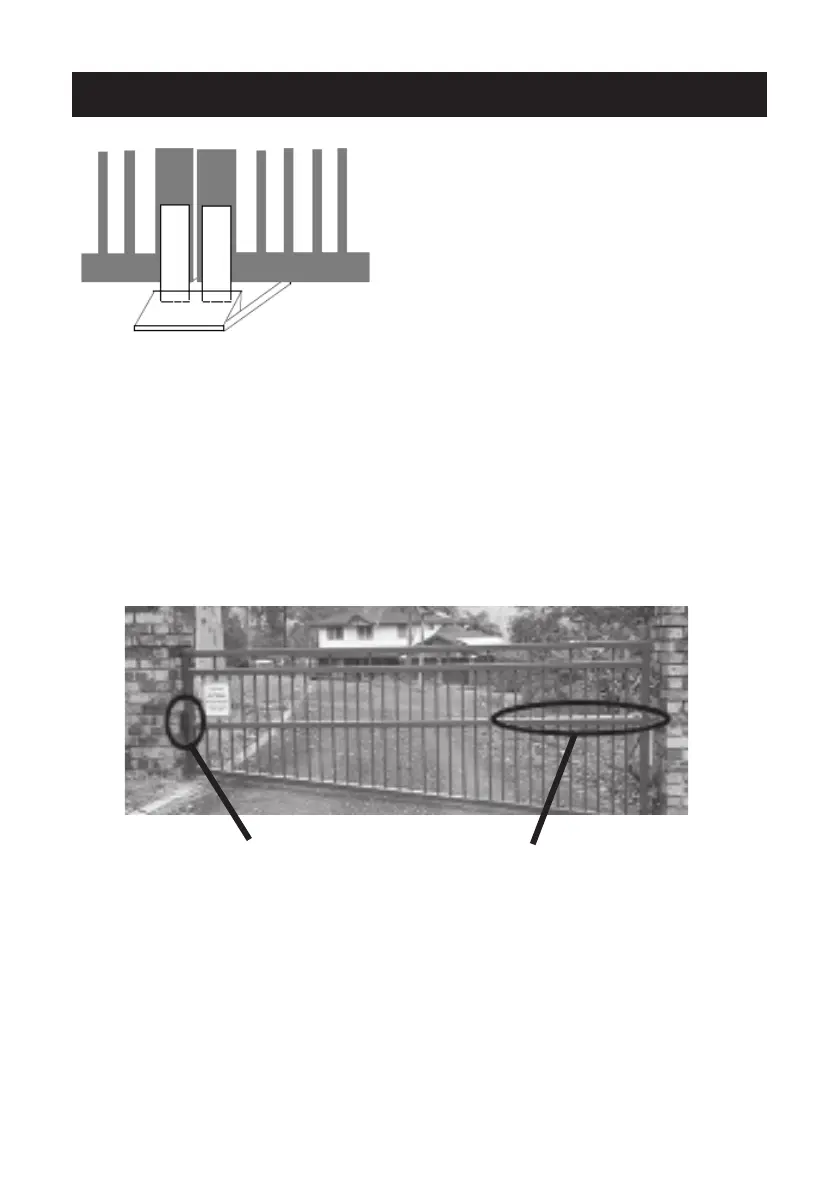

Rubber gate stop
GATE TABS FOR DOUBLE GATES
Rubber gate
Stop on post
Actuator arm on
same level
Full-Close Position
Each gate must stop on a rm and well secured Gate Stop in the closed
position. Failure to do so may result in misalignment and accelerated wear to
the system and the gate hinges.
Full-Open Position
In the full-open position, the gates can either be hard stopped by a peg / stop-
per, or be stopped by the internal built-in mechanism at the end of the
retracted arm (Pull-to-Open gate) or fully extended arm (Push-to-Open gate).
