BMGi E8 - Page 31

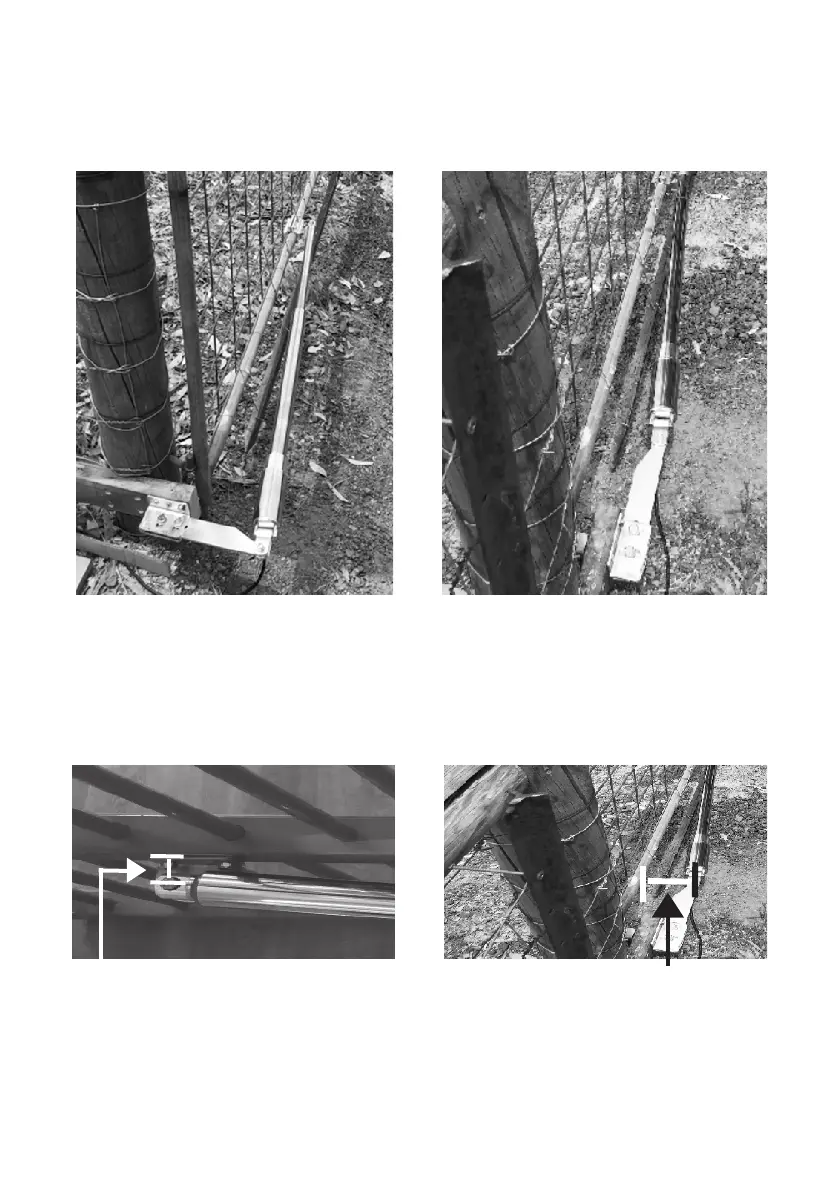

Push-to-Open Setup
Checking the minimum clearance required
between the actuator arm and gate
Minimum clearances required between the gate and
actuator arm are shown below - this is to prevent the
gate opener from running parallel with the gate.
1. Minimum measurement required
between centre pin and gate
Gate in closed or open position with
arm rectracted should be no less than
Using standard gate bracket = 35mm
Using round gate bracket = 47mm
Image above showing rear mounted
post bracket with the gate in the
open position
Image above showing rear mounted
post bracket with the gate in the
closed position
Gate in closed or open position with
arm rectracted should be no less than
Using standard gate bracket = 110mm
Using round gate bracket = 122mm
2. Minimum measurement required
between centre back pin and gate
31
