Motor Control
Only one motor may be operated at a time. Once a motor is in operation, motor
control will be disabled in any other device running the app. This does not
include the leveling system.

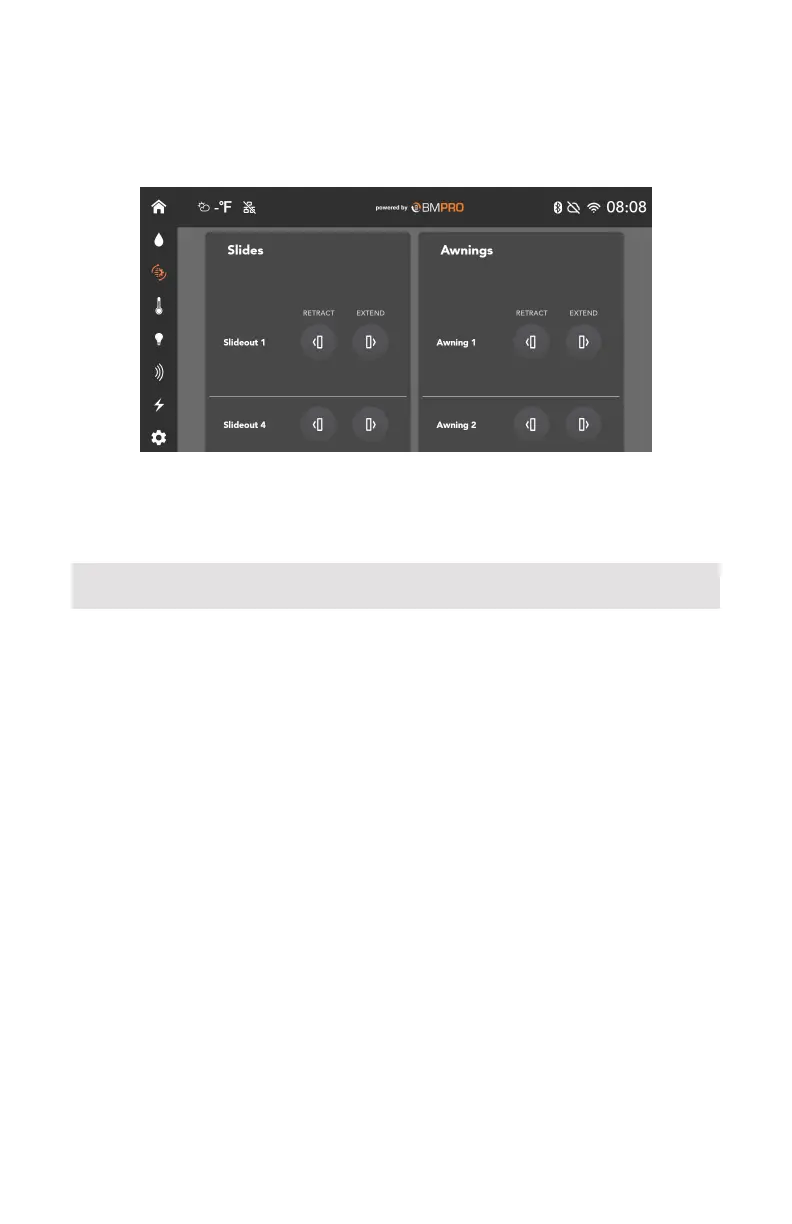

To operate motors on your own device, swipe to unlock the Motors screen.
Motor Lockout Feature
The motor lockout feature is only available if your RV is equipped with a Controller.
The system will automatically lock out one or all of the motors if either of the
following conditions are met:
1. All motors are disabled: If 12V are detected on pin 64 (Brake High Input),
the motors will be disabled, motor controls will be greyed out and a pop-
up message will appear.
The pin 64 wire is connected to the turn signals and brake lights on the
7-way plug to the tow vehicle. Whenever a turn signal is activated or a
hard brake is detected, the system will shut down and lock the motors to
prevent operation.
Motors can be re-enabled by:
9 Swiping on the pop-up that appears on the Controller screen.
9 Pressing any of the keys on the outside leveling touchpad if a
compatible leveling controller is installed.
2. Slides will not retract: If a potential crush hazard could occur when a
specific slide is retracted, an an (i) will appear next to Slides with a pop-up
message relating to the lockout.
Check around the slide for a door that should be opened or closed to
prevent the slide from crushing it.
