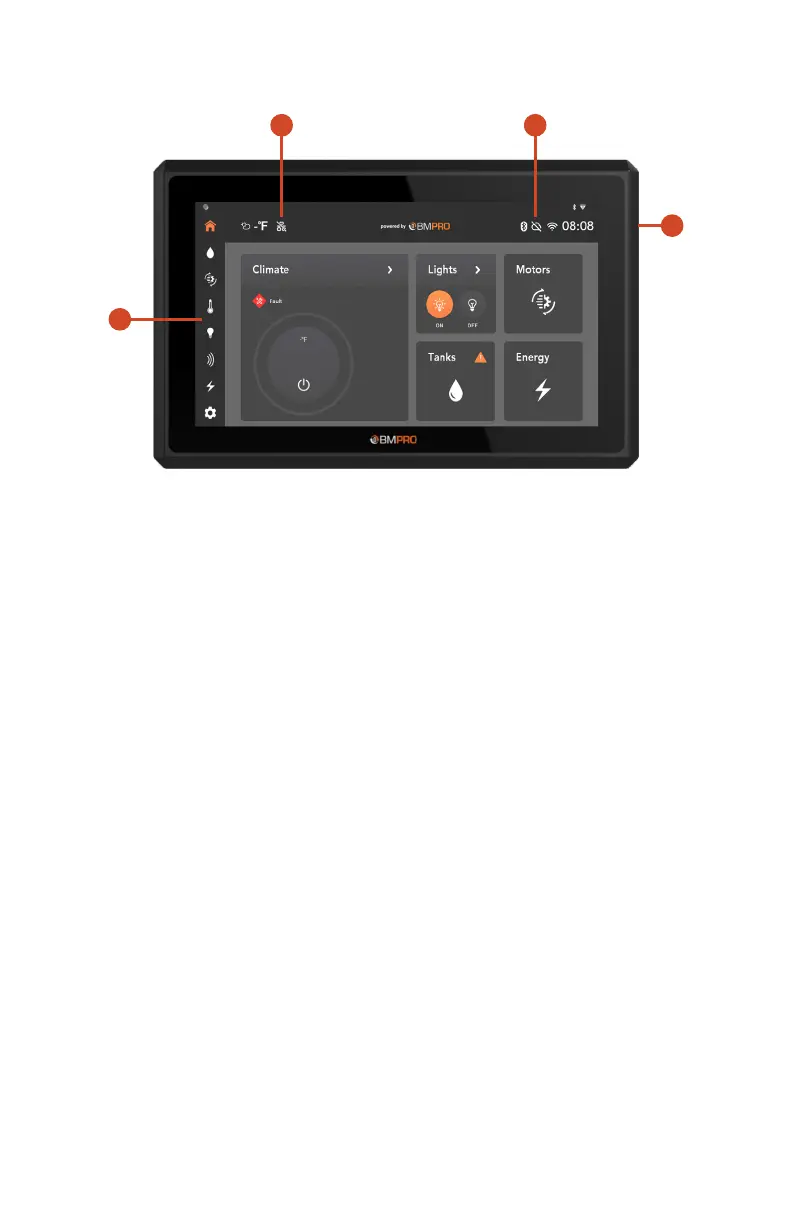

CONTROLLER (MODEL DEPENDENT)
1
4
2 3
1. Page Navigation Sidebar
Used to navigate between pages.
2. CAN Bus Connection Indicator
Indicates when the Controller is connected to the CAN Bus.
3. Wireless Connection Indicators
Icons will appear on the screen if the Controller is connected to Bluetooth,
the cloud or Wi-Fi.
Multiple icons will appear if the Controller is connected to multiple
services.
4. Screen Power Button
Used to turn the screen on or off.
13
