Close the supply terminal

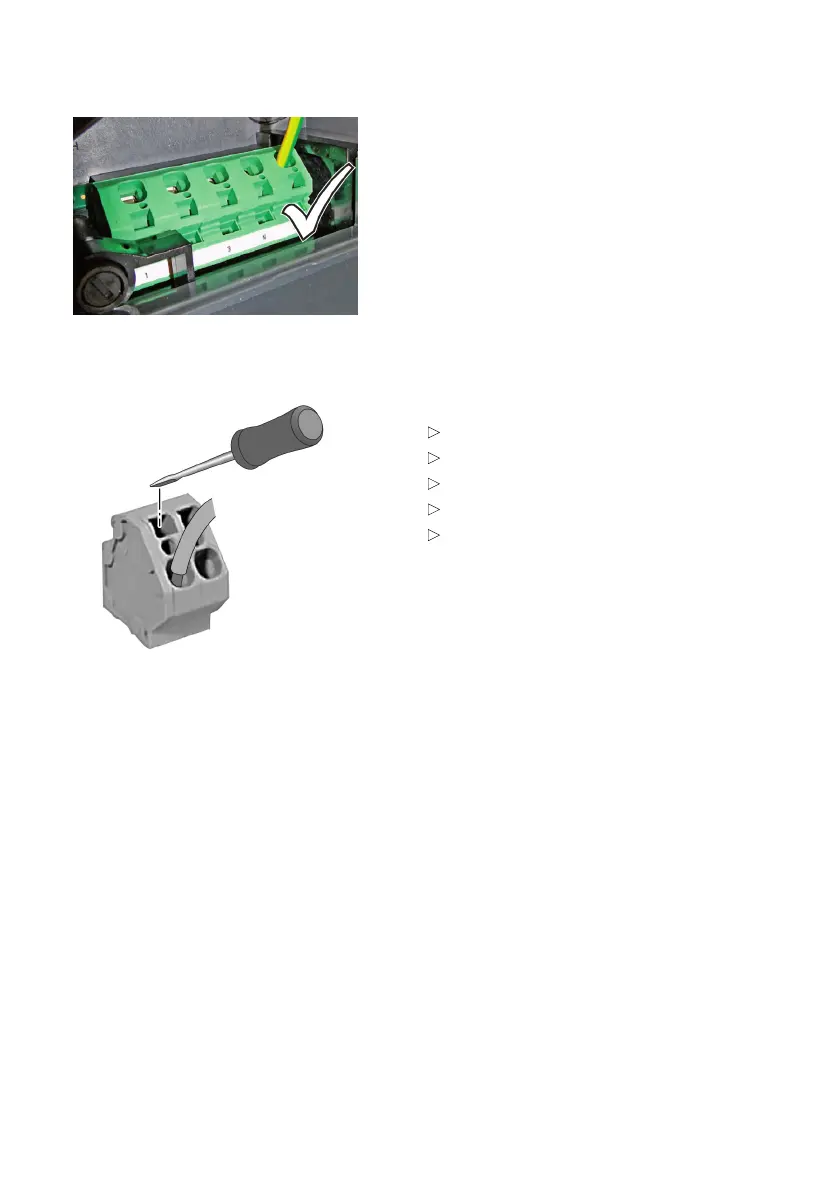

1. Pull the screwdriver fully out of the terminal to
close the contact.
2. Check that the connecting wire is secure.
3. Connect the other connecting wires in the
same way.
Terminals X1/X2
Terminal data for X1/X2
Spring-type terminals
Cross-section (min.-max.): 0.08 – 4 mm²
AWG (min.-max.): 28 – 12
Stripping length: 8 mm
Slotted screwdriver: 3.0 mm
