Maximum charge current (DSW1)
The following DIP switches can be used to set a maximum value for the charge current. This maximum
value is valid for each connected phase individually and not as a total value for all phases together. The
power input is transmitted to the vehicle (Control Pilot Duty Cycle). A maximum value can only be set
which is less than or equal to the operating current according to the rating plate.
DIP switchCurrent
DSW1.6 DSW1.7 DSW1.8

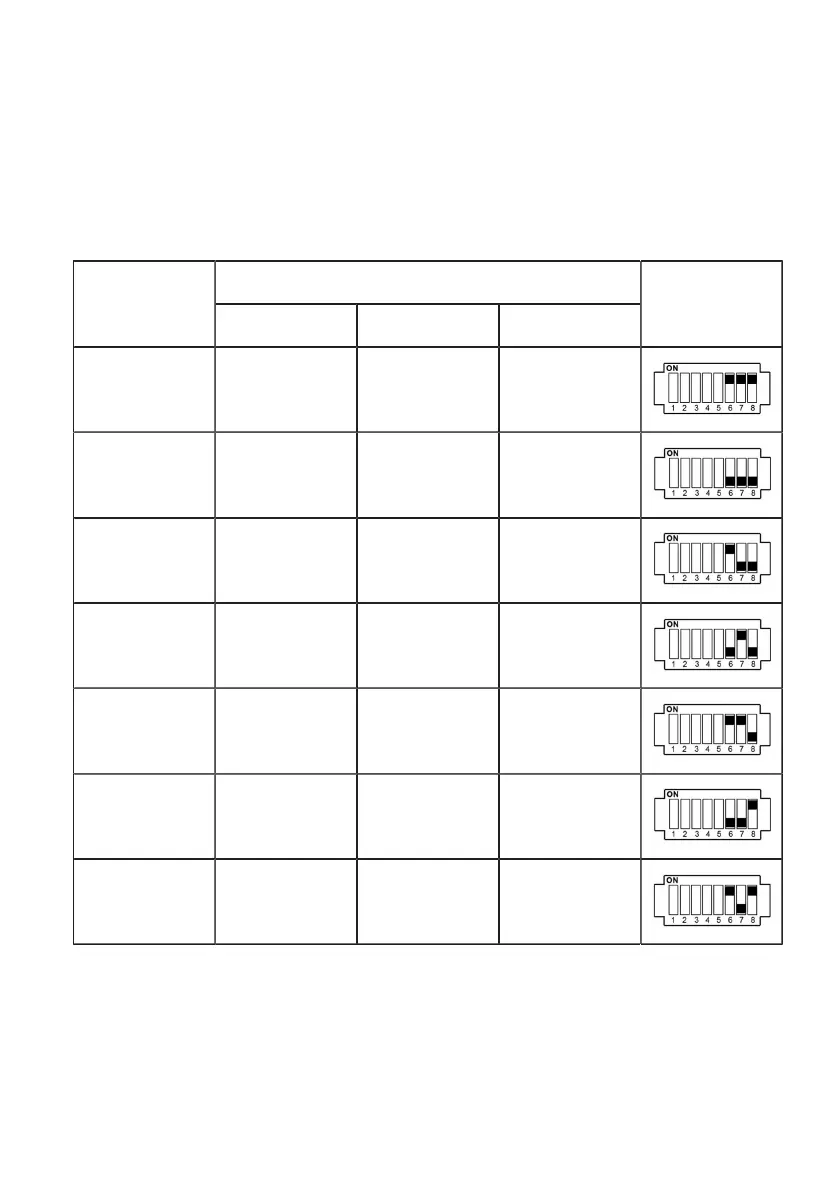

Illustration
0 A ON ON ON
10 A OFF OFF OFF
13 A ON OFF OFF
16 A OFF ON OFF
20 A ON ON OFF
25 A OFF OFF ON
32 A ON OFF ON
42
