17
On-Board Monitor and Navigation Systems

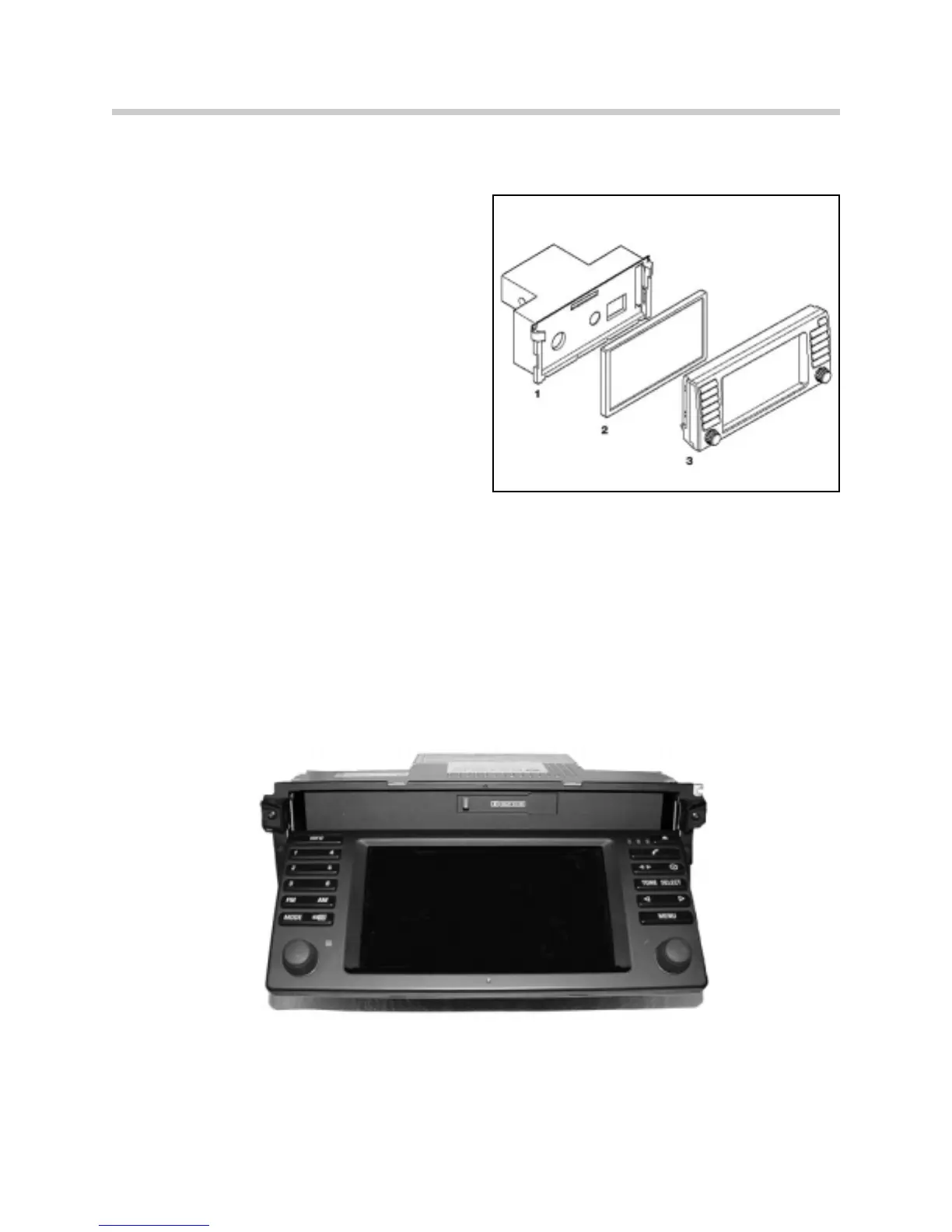

Component Overview
The wide screen on-board monitor consists
of:
1. Monitor housing with cassette drive
2. Display screen
3. On-board monitor control panel
Cassette Drive
The cassette drive is located behind the on-board monitor screen. In order to access the
cassette, press the eject button, the display screen tilts forward to uncover the cassette
slot. The images will remain displayed on the screen.
After pressing the eject button again or automatically after 15 seconds the display returns
to its normal position (cassette must be completely inside or removed). The tilt mechanism
for the display screen utilizes anti-trap, if the board monitor detects a sudden change in
speed, the display will reverse direction.
