On-Board Monitor and Navigation Systems

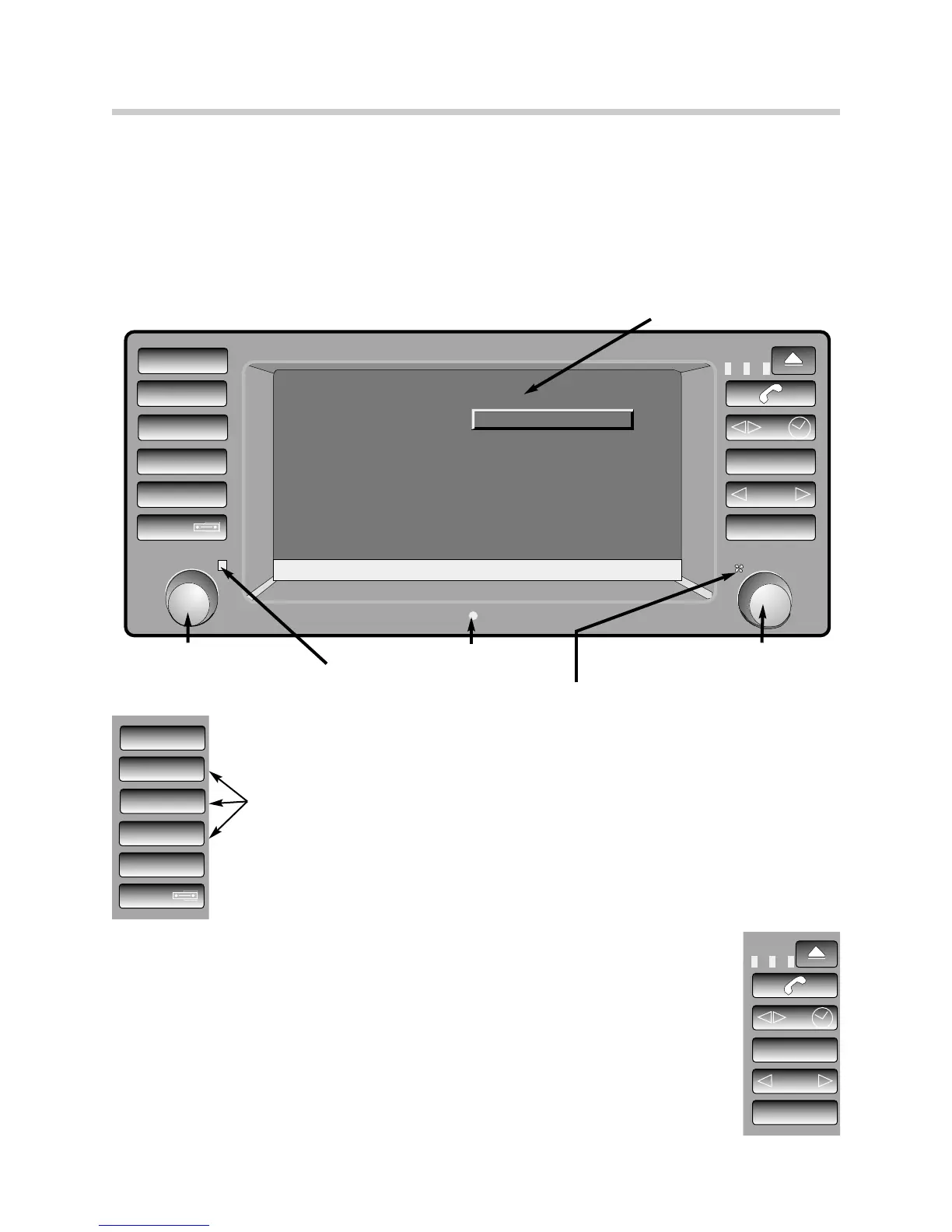

Display Screen and Control Panel
The display screen has a diagonal width of 6.5 and an aspect ratio of 16:9 compared to
the previous monitors that had a ratio of 4:3. The new screen also uses a Ad-TFT display
(Advanced Thin Film Transistor). This type of screen uses ambient light in addition to back-
lighting in order to illuminate the display. The advantage is a constant contrast and
brightness level at all ambient lighting conditions.
11.13.2000 Thursday 10:17
INFO
1
4
25
36
FM AM
MODE
MENU
TONE SELECT
MENU
On-board computer
DSP
Code
Set
GPS-Navigation
Monitor off
Emergency
Aux. Ventilation
INFO = Activates the soft key menu for RDS and PTY
1-6 BUTTONS = Audio presets and CD selection
AM/FM SELECTION
MODE/DISPLAY = Mode selects between audio functions. Display alternates between
radio display and other displays. BC,TEL,NAV etc.
6.5 INCH DISPLAY
16:9 ASPECT RATIO
PHOTOCELL SENSOR
RADIO STATUS LED = Signal from
radio via I/K bus.
AUXILIARY FAN INDICATOR LED
RADIO CONTROL KNOB
ON-BOARD MONITOR CONTROL
KNOB
INFO
1
4
25
36
FM AM
MODE
MENU
TONE SELECT
TELEPHONE STATUS LEDs / EJECT = Tilts monitor to access cassette drive.
TELEPHONE = Send/End button
TAPE REVERSE/CLOCK = Clock: Pressing with key off displays time. Aux. ventilation
can be switched by holding button longer.
TONE/SELECT=Tone: Dolby (cassette only) and audio adjustments.
Select: Choose between station search methods (a,m or scan).
FAST FORWARD/REVERSE / STATION SEARCH
MENU = Returns display to main menu
