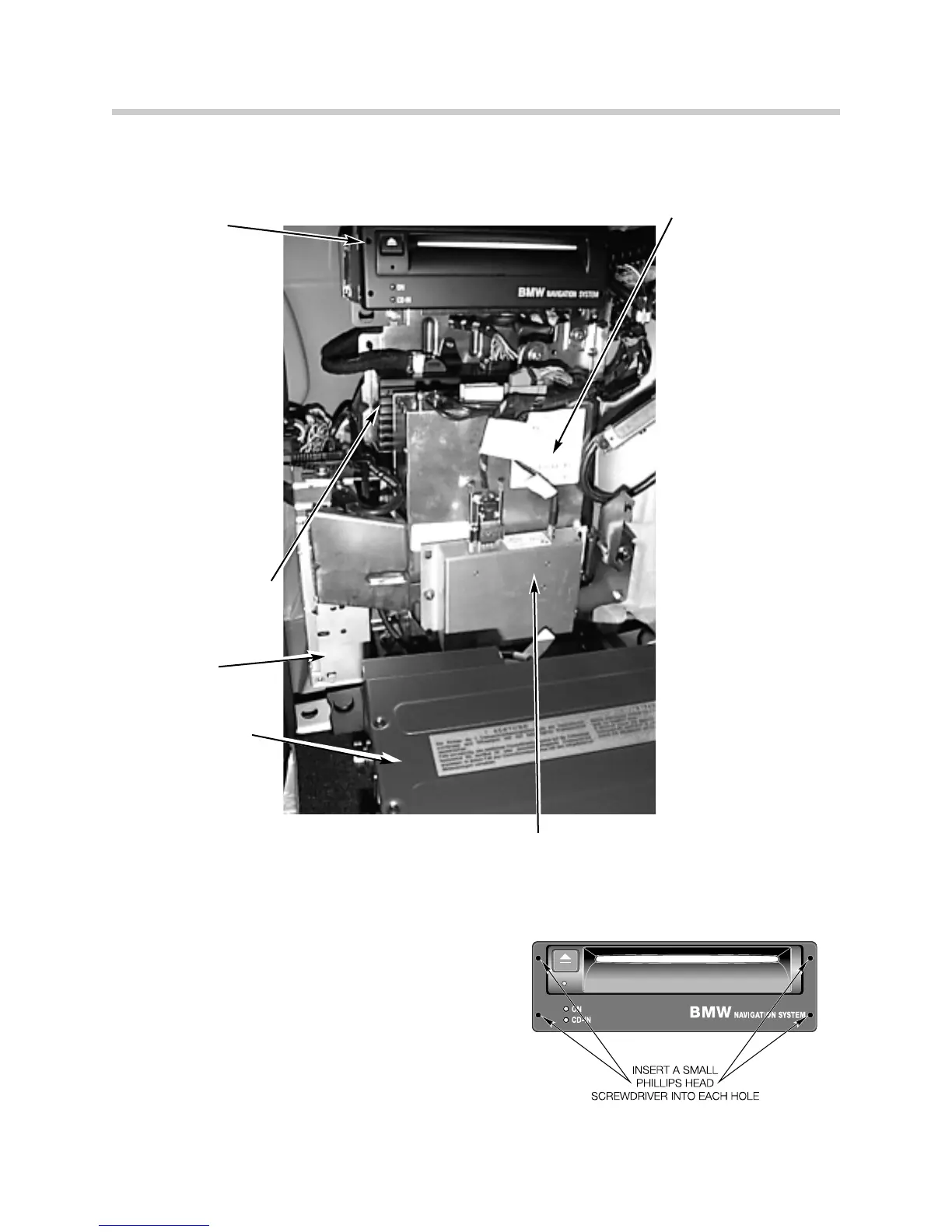

The following components are mounted in the trunk on the left side behind the
trim cover
Mark I
NAVIGATION
COMPUTER
MODULE
It contains a micro-
processor and CD
drive for navigation
system operation.
The navigation
computer is linked
directly to the
video module
which provides the
visual and audio
output instructions
for the navigation
system.
AUDIO SYSTEM
AMPLIFIER
RADIO
RECEIVER
AUDIO SYSTEM
CD CHANGER
GLOBAL POSITIONING RECEIVER MODULE (GPS)
The module determines the exact position of the vehicle from known orbits of GPS
satellites. The GPS receiver interfaces with the Navigation computer module for
determining the vehicle position.
NAVIGATION COMPUTER REMOVAL:
To remove the nav. computer from the mounting
bracket insert four small phillips head
screwdrivers into the four holes on the face
plate. Push the screwdrivers in past a slight
detent. Pull the nav. computer out of the mounting bracket.
VIDEO MODULE
The video module
generates the Red,
Green and Blue
video signals for the
on-board monitor
LCD screen. The
RGB signals are for
all functions of the
on-board monitor
including the nav.
system.
The video module
also serves as a
data memory for the
navigation system.
As needed the
video module
instantly provides
the RGB signals to
change the on-
board monitors
display and sends
the audio signals to
the audio system
amplifier.
5
On-Board Monitor and Navigation Systems
