ON-BOARD MONITOR AND NAVIGATION SYSTEM INTERFACES
I BUS - The On-board Monitor Control Module/Panel is connected to the I-Bus for
communication with the other I-Bus components. Data communication takes place over
the I-Bus between the BMBT and the following modules:
IKE
Telephone Handset
Multi-Function Steering Wheel (MFL)

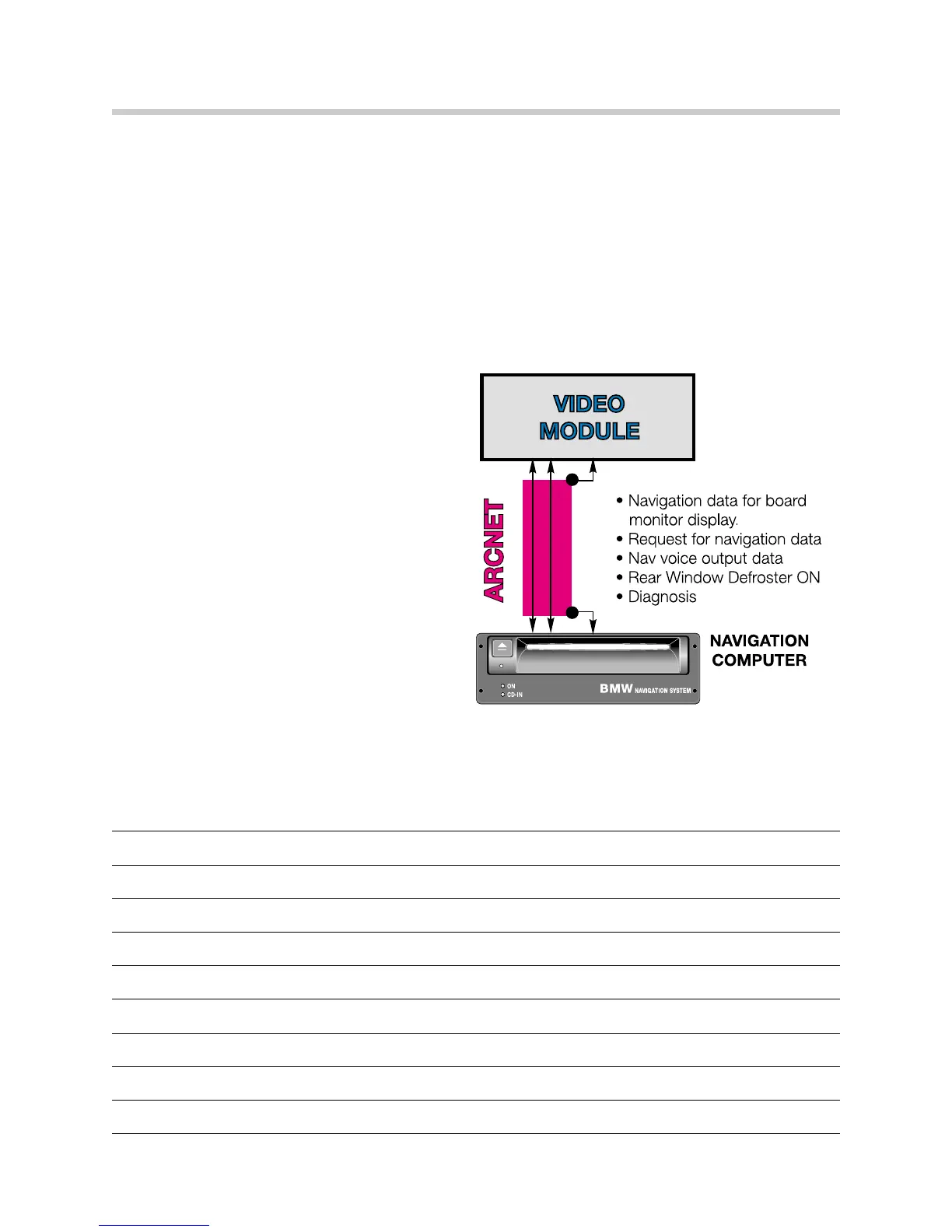

ARCNET - The Attached Resource
Computing Network is a high speed (2
MB/sec) digital data link. The Navigation
Computer and Video Module are
connected by the ARCNET for isolated
high speed navigation system
communication.
The ARCNET is made up of two data
wires and a shield similar to the familiar
CAN data link. The shielded ARCNET
cable has its own triaxial type connector
ends that are pushed onto their mating
connectors on the modules.
Video Module Red, Green Blue (RGB) output - The On Board Monitor is connected to
the Video module through the RGB connection for the LCD screen displays. Each of the
three color signals is shielded.
Radio Receiver
Video Module
Audio System Amplifier
7
On-Board Monitor and Navigation Systems
