6. Press the start function on the On-board monitor.
7. Drive the vehicle slow and continuously forward (dont stop) until the rear tires are
between the 4 and 8 meter marks (go as close to the 8 meter mark as possible) and
stop.
8. Press the stop button on the
monitor. Set the parking brake.

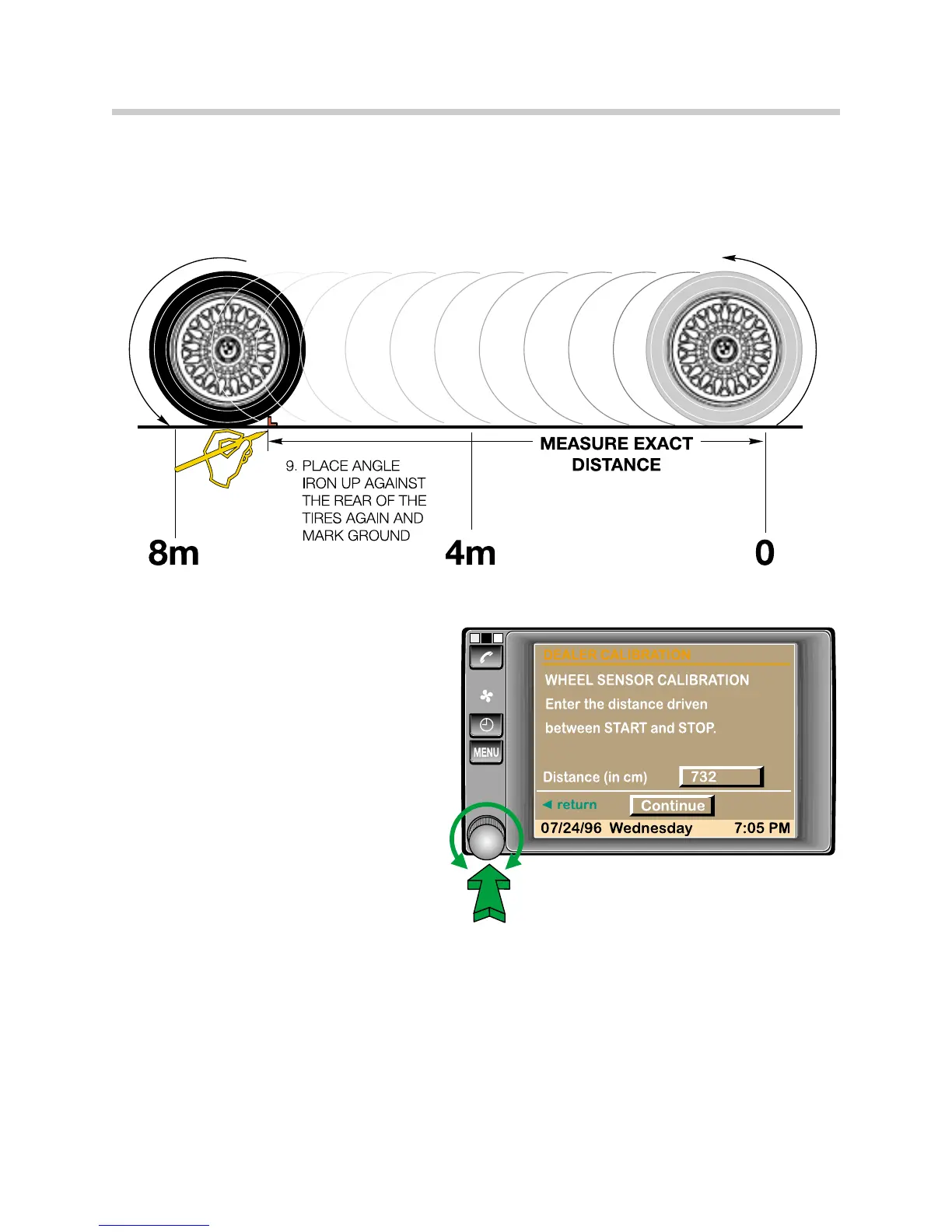

9. Place the angle iron up against the
rear of the back tires again and
mark the ground with the chalk.
10 Precisely measure the distance
from the starting point to the end
point (tolerance < 1cm) and input
this value using the rotary knob.
Then press continue.
Drive the vehicle to the known
minimum 100 meter street or area.
Press the start button by driving the vehicle straight ahead for a distance of at least 100
meters.
The vehicle speed must also be < 40 KMH and the steering wheel must be held straight.
Once you have travelled at least 100 meters stop the vehicle and press stop.
The monitor screen will display the calibration has successfully completed.
43
On-Board Monitor and Navigation Systems
