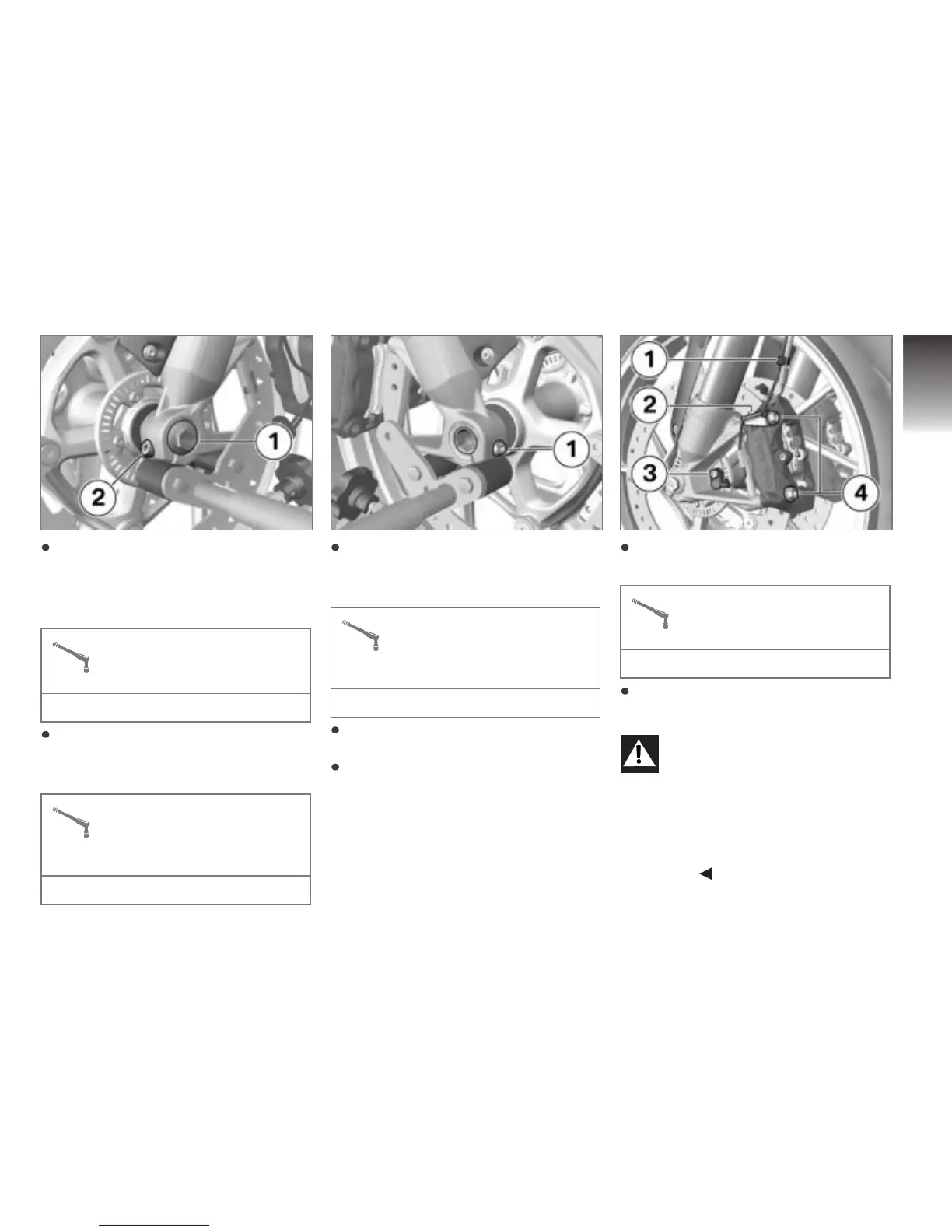

Install screw 1 with specified
torque. Brace quick-release
axle on the right side at the
same time.
Quick-release axle in
telescopic fork
22 lb/ft (30 Nm)
Tighten left axle clamping
screw 2 with appropriate
torque.
Clamping screw for
quick-release axle in
telescopic fork
14 lb/ft (19 Nm)
Tighten the right-hand axle
clamping screw 1 with the
specified torque.
Clamping screw for
quick-release axle in
telescopic fork
14 lb/ft (19 Nm)
Remove front wheel stand.
Slide the brake calipers on the
left-hand and right-had side
onto the brake rotors.
Install securing screws 4 on left
and right with specified torque.
Brake caliper on tele-
scopic forks
28 lb/ft (38 Nm)
Remove adhesive tape from
wheel rim.
Braking efficiency is im-
paired if the brake pads are
not correctly bedded against the
disks.
Before driving off, check that the
braking effect kicks in without
any delay.
