105

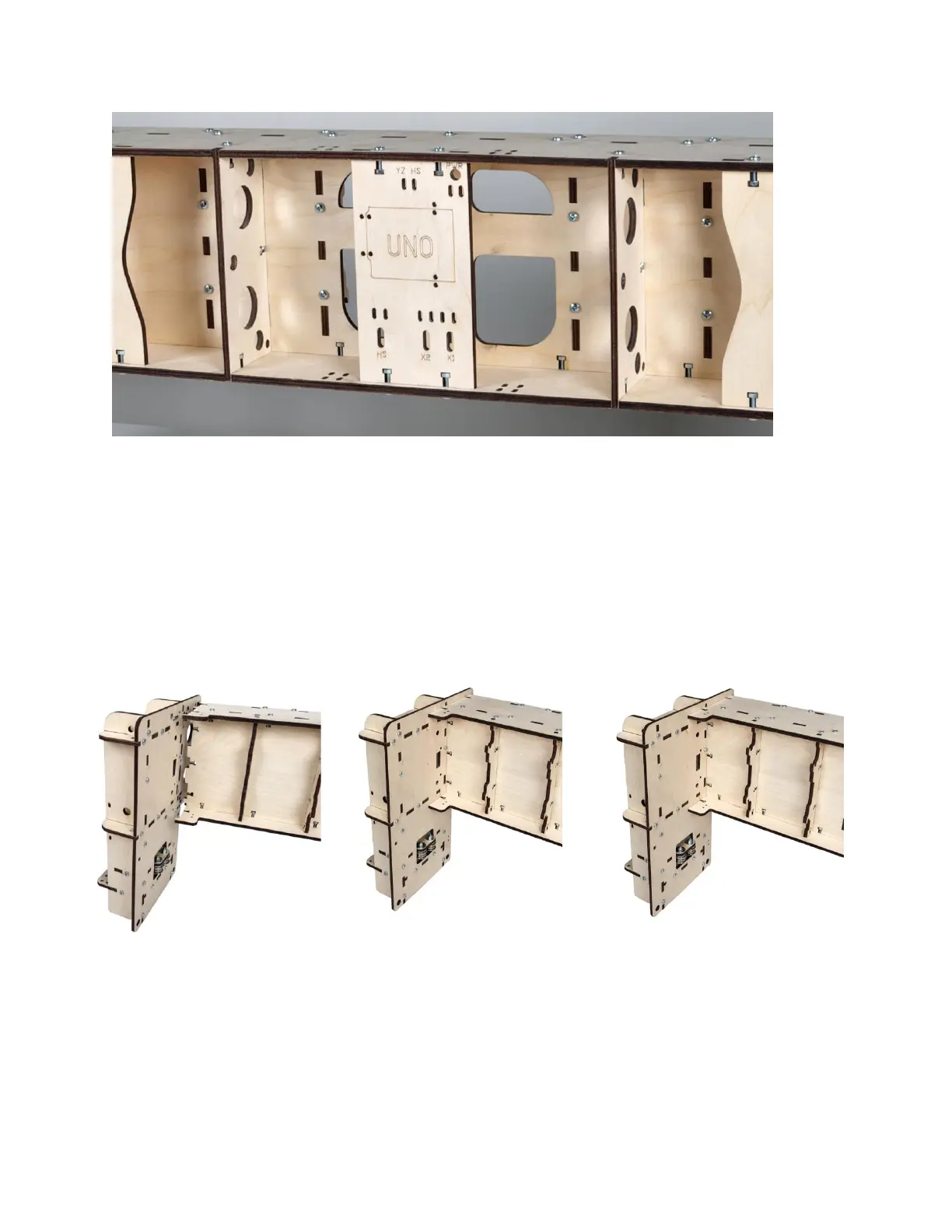

Step 2g Align and fit the tabs of the Gantry Assembly
into the slots of the left Gantry Side Assembly
and secure with seven M4 x16 Machine Screws
and Nuts
