106

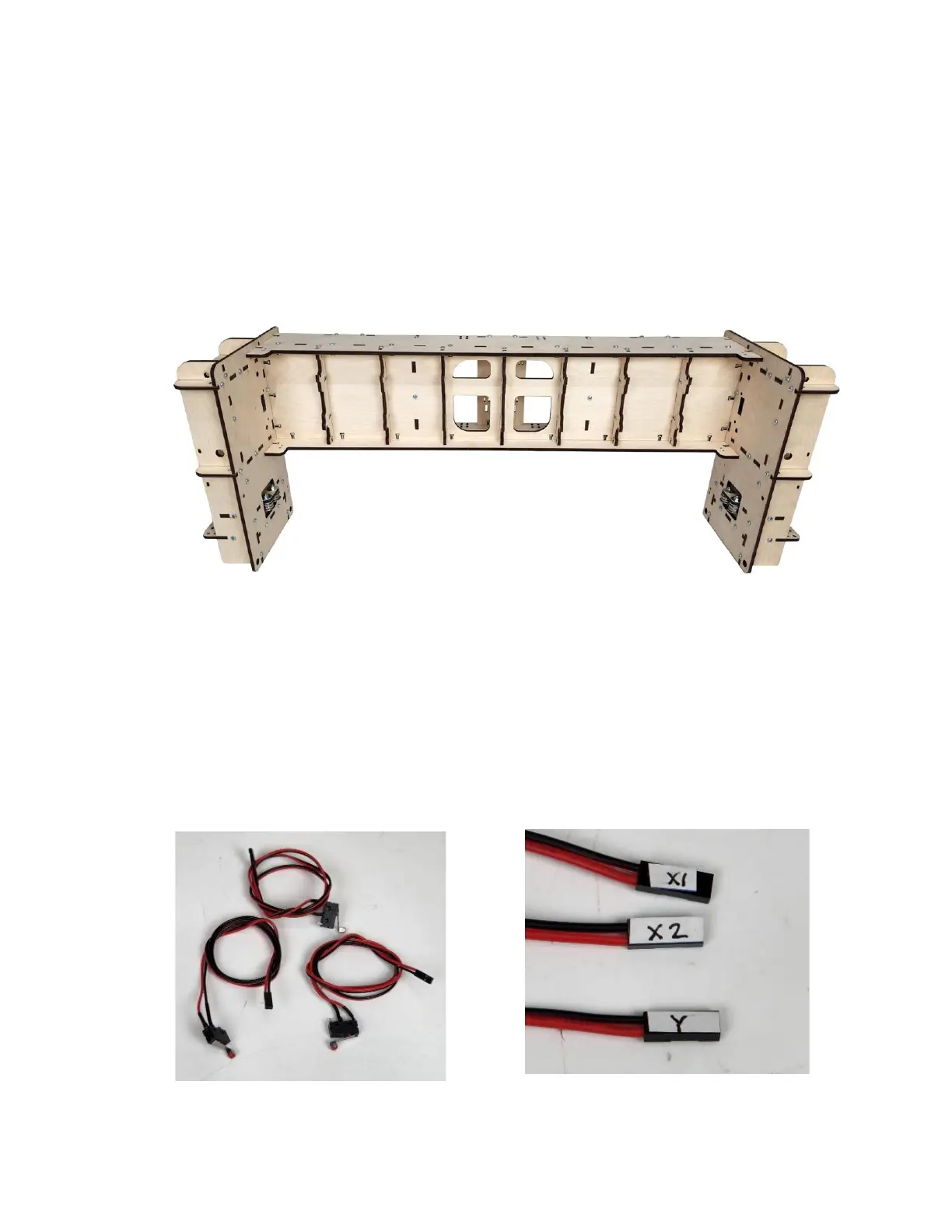

Step 2h Align and fit the tabs of the Gantry Assembly
into the slots of the right Gantry Side
Assembly and secure with seven M4 x 16
Machine Screws and Nuts. (Completed
Assembly below).
Step 3 Attaching the X1, X2, and Y Home Switches.
Step 3a Take the three (CB19) Home Switches and
label the DuPont Connectors “X1”, “X2” and
“Y”.
