BobsCNC QUANTUM MAX User Manual

108

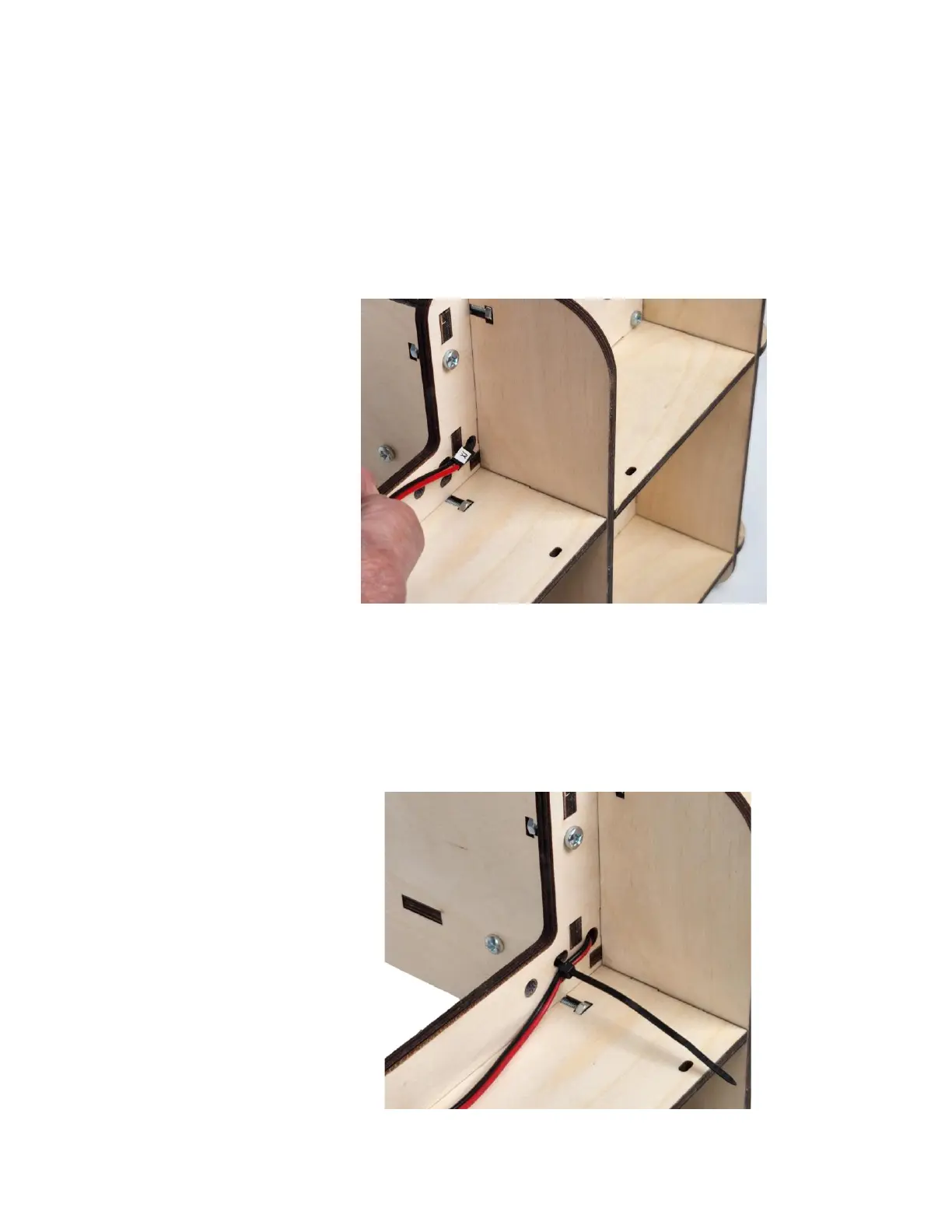

Route the X1 Home Switch wire from the
mounting position up and through the hole in
the Gantry Side Assembly, across the Gantry
Assembly, and through the Controller Mount
as shown.
Secure with a Zip Tie. Trim excess material
after securing. Route the Home Switch Wire
across the Gantry Assembly and through the
Controller Mount as shown.
