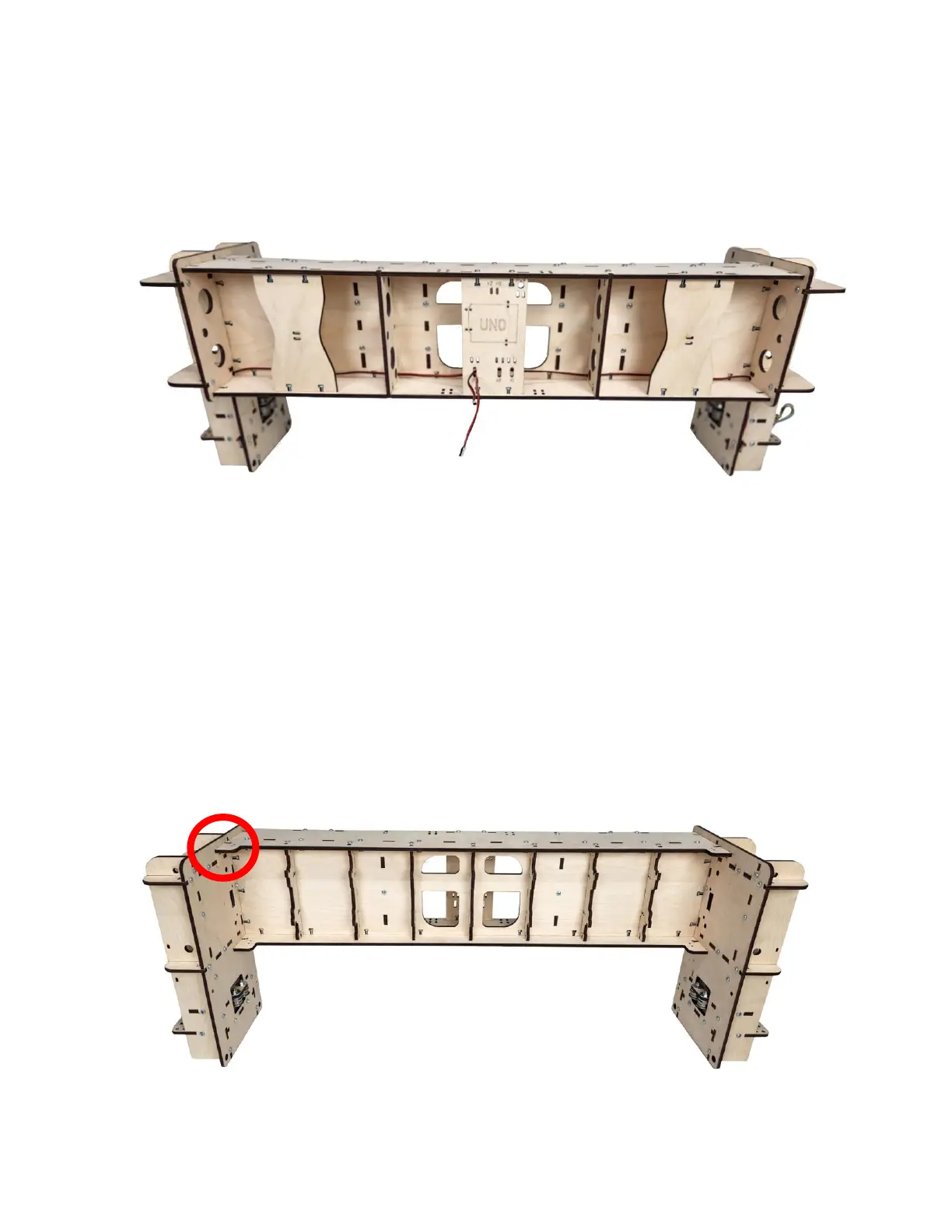

Follow the same procedure to install X2 Home Switch on the
opposite side, as shown below.
Step 3b The “Y” Home Switch is located on the top left
front side of the Gantry Assembly as shown.
Y
