112
Step 4 Routing the X1 and X2 Stepper Motor Wire to the
Controller Support.

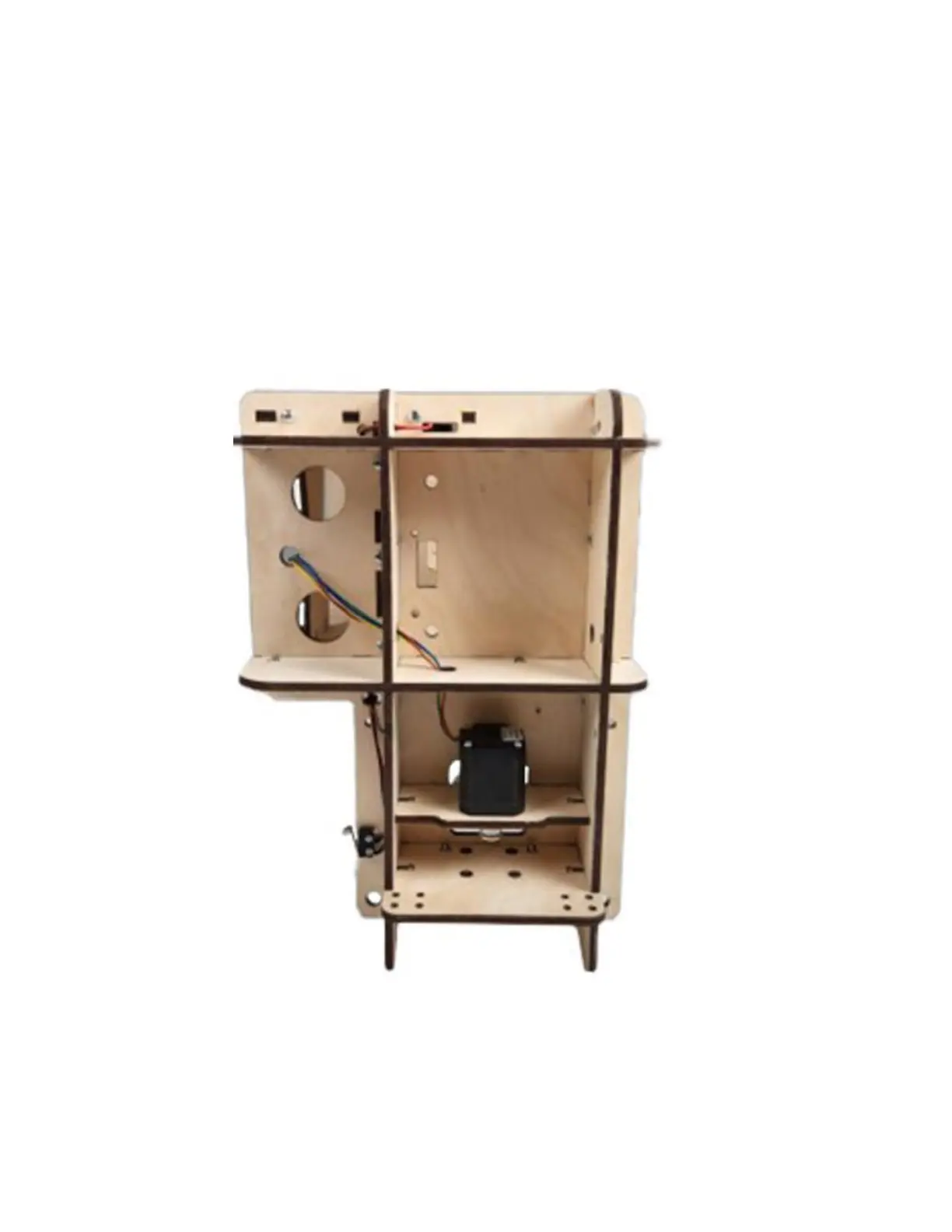

Step 4a Take the DuPont Connector for the X1 Stepper
Motor (right side when viewed from the back)
and run it up and through the three holes in
the Gantry Side Assembly as shown.
