BobsCNC QUANTUM MAX User Manual

113

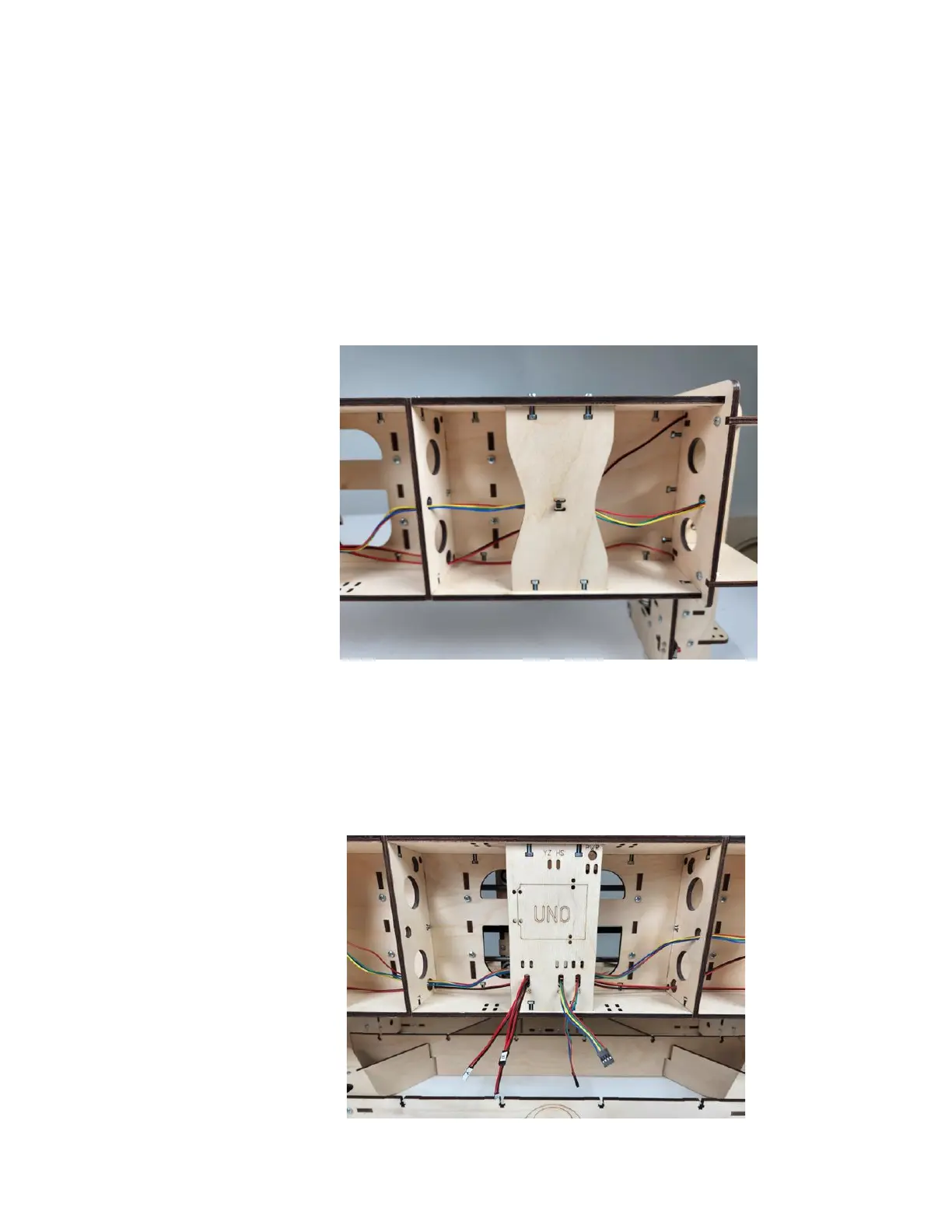

Route theX1 Stepper Motor wire across the
inside of the Gantry Assembly and through
the Gantry Back Brace. After running the
connector and wire though the X1 opening at
the bottom of the Controller Mount use a
small zip tie and secure the wire to the Gantry
Back Support as shown.
Step 4b Repeat the process to route the X2 Stepper
Motor Wires.
