117

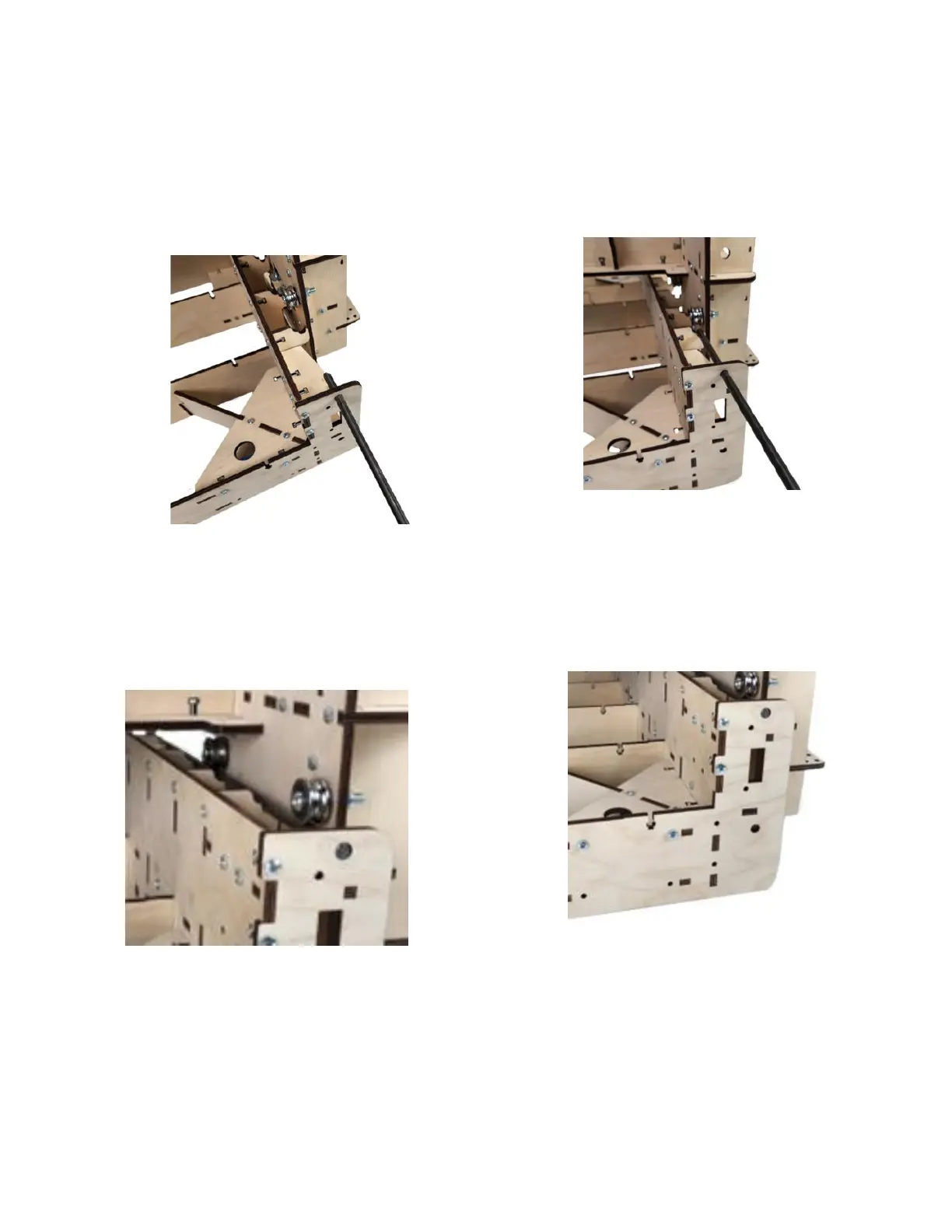

Step 7b Insert the Rails (H99) into and through
the upper holes in the X Frame End and
supports, as shown.
Lift the Gantry Assembly so that the rail slides beneath both top
Bearings. Insert the Rail completely, so that the ends of the Rail are
seated flush in the Front and Back End Supports.
Repeat to Insert the bottom Rails completely, so that the ends of the
Rails are seated flush in the Front and Back End Supports.
