116

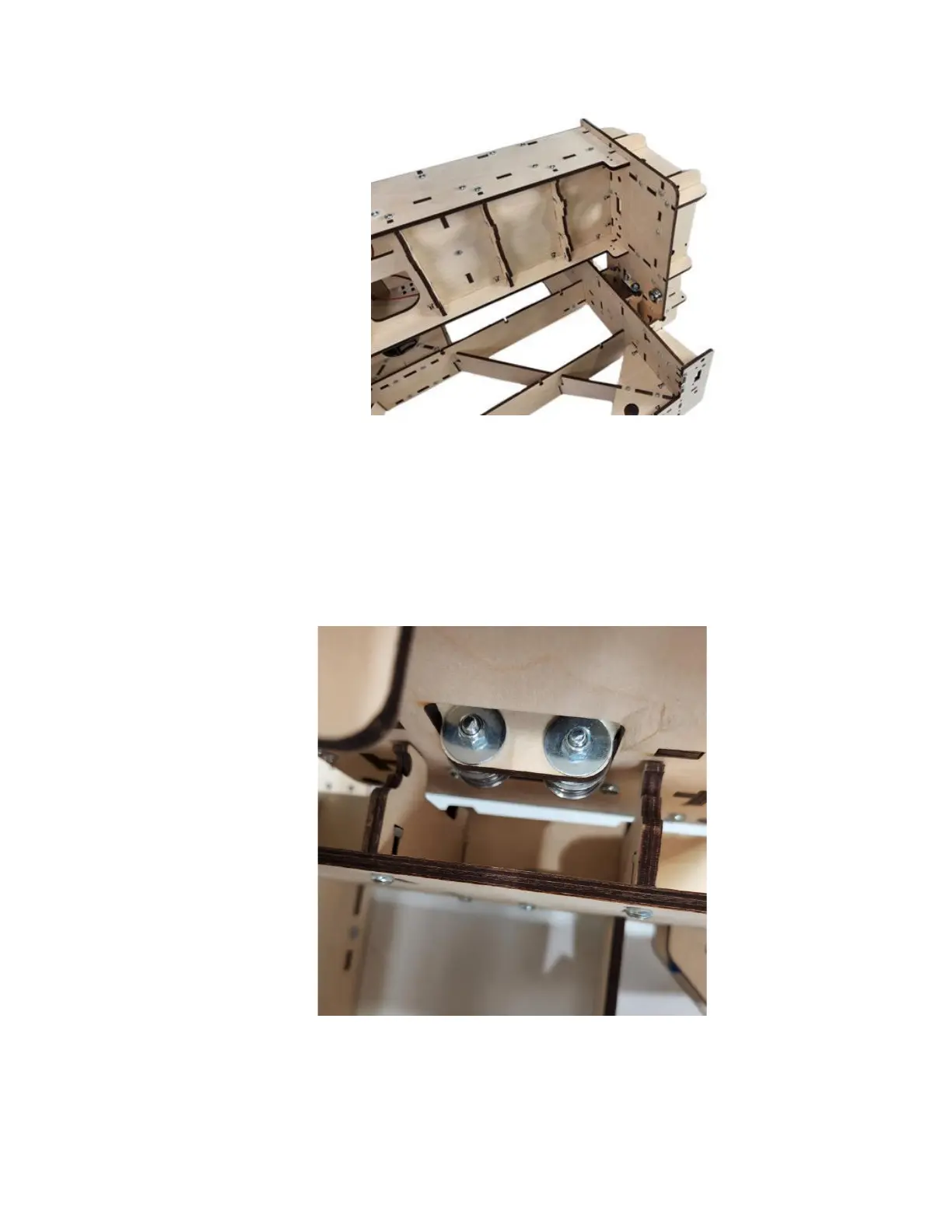

Notice that the Idler Bearings of the X1 Stepper Motor fit

between the rail supports.

Step 7a Insert the Gantry Frame Assembly onto the X

Frame Assembly.
