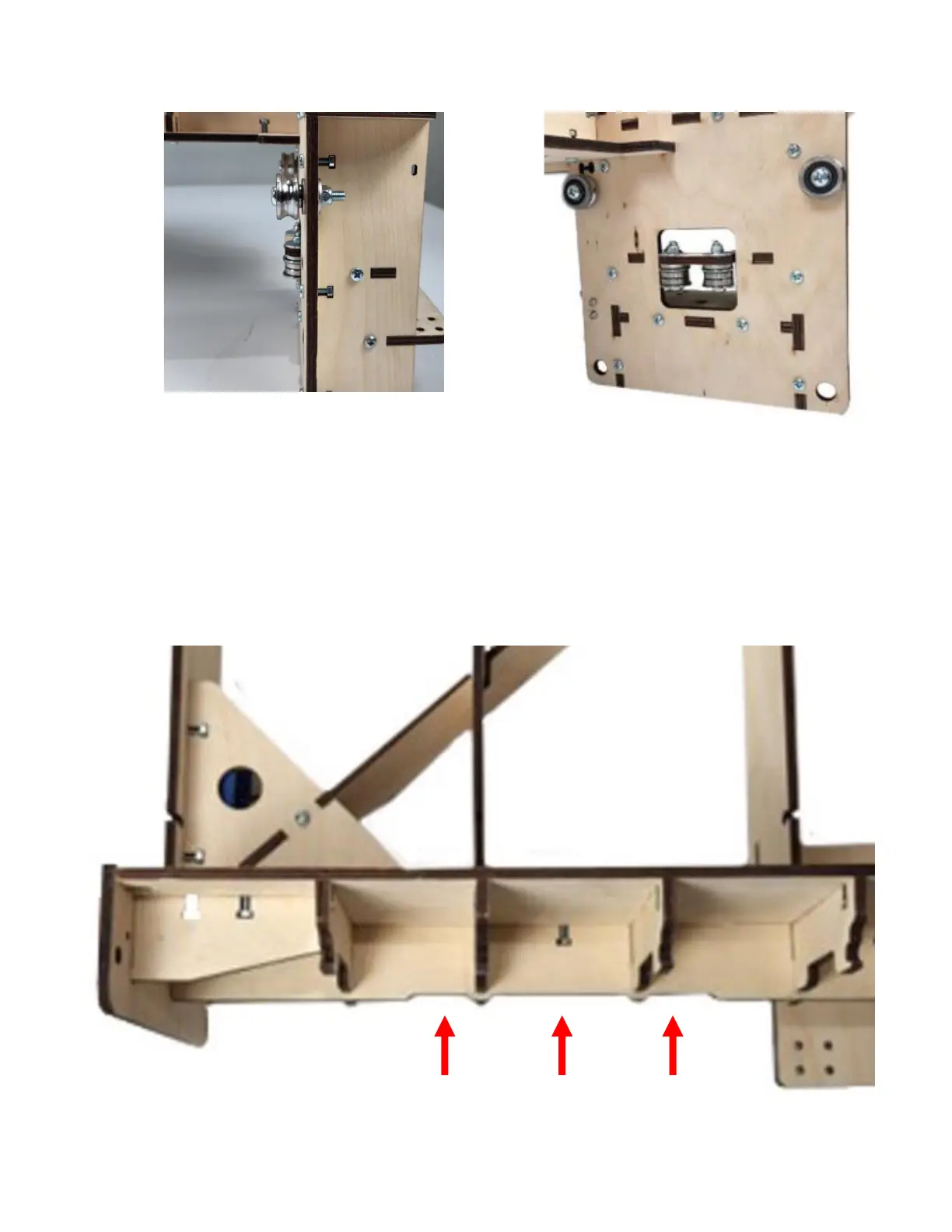

Step 7 Attaching the Gantry Assembly to the X Frame
Assembly.
Notice the cutouts in the X Frame Side Supports.
Step 7a Carefully align the Gantry Sides with the
cutouts in the X Frame Assembly and lower
the Gantry Assembly until it rests on the X
Frame Assembly.
