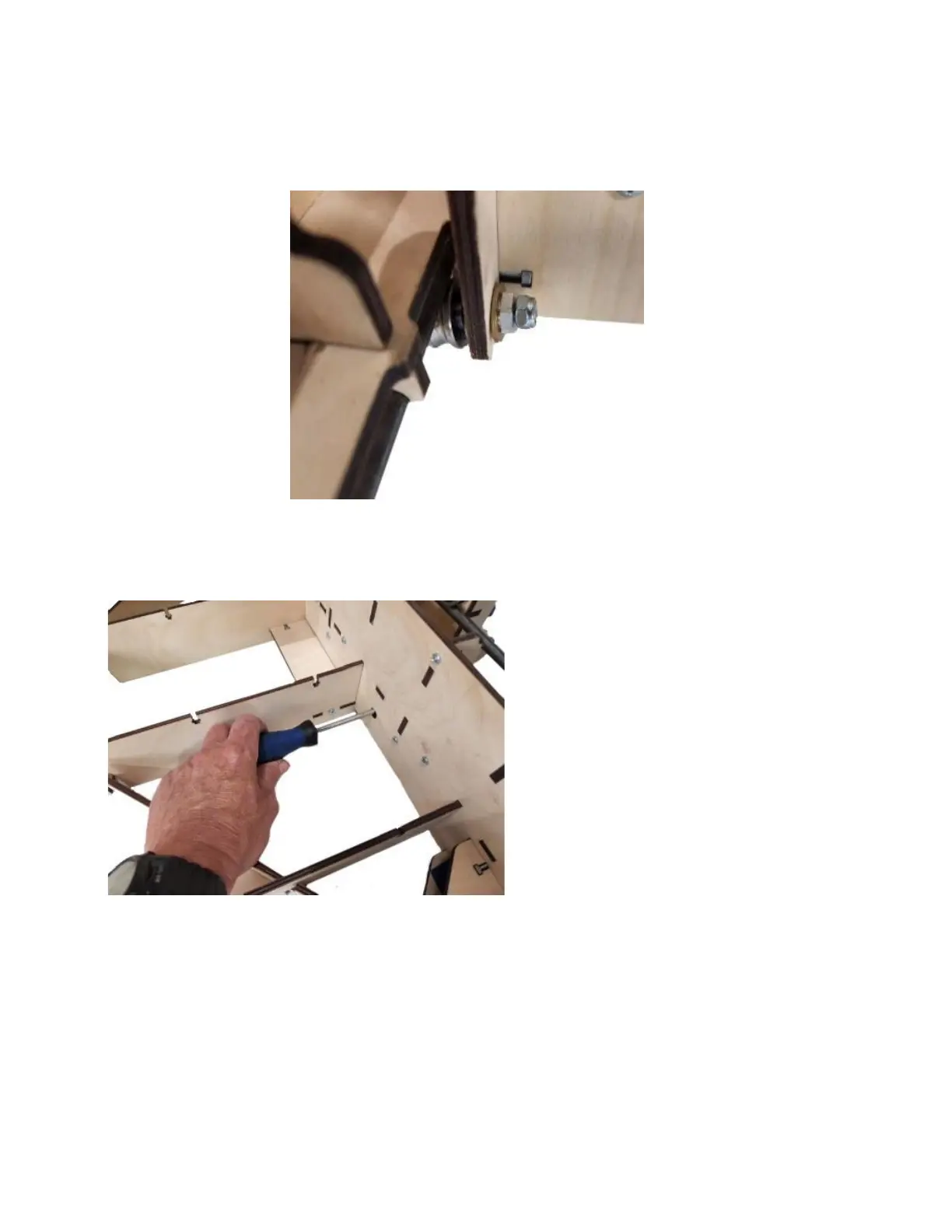

Step 8b Slide the Eccentric Washer and Eccentric Spacer on
the Machine Screw and secure with a M6 Lock Nut.
Insert a Phillips screwdriver
through the access hole in
the bottom of the Frame
Support and using a 10mm
socket, snug the Locknut
firmly against the face of the
Eccentric Spacer and repeat
to install all four Eccentric
Bearing Assemblies.
