BobsCNC QUANTUM MAX User Manual

128

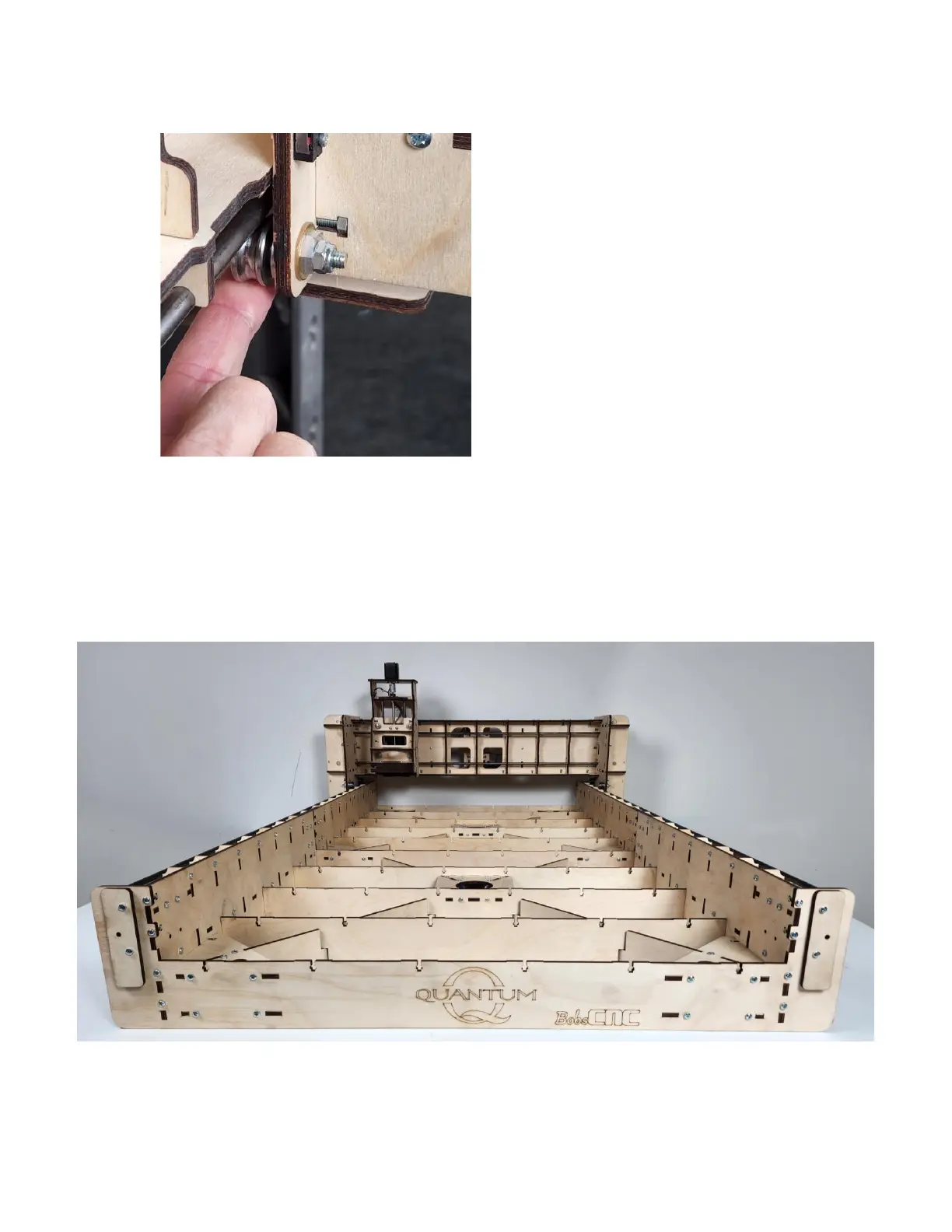

The SG20U Bearing should be
snug against the rail. Use your
finger to roll the bearing. It
should not spin in place. When
the bearing is properly
adjusted against the rail the
entire Y Carriage Assembly
should move as you roll the
bearing. Make sure the Y
Carriage rides smoothly along
the full length of the rails.
Adjust as required.
