Step 3 Attaching the GT2 9mm Belts.

Step 3a Cut two lengths of the GT2 9mm Belt 60

inches long for the X axis and one to 34

inches for the Y axis.

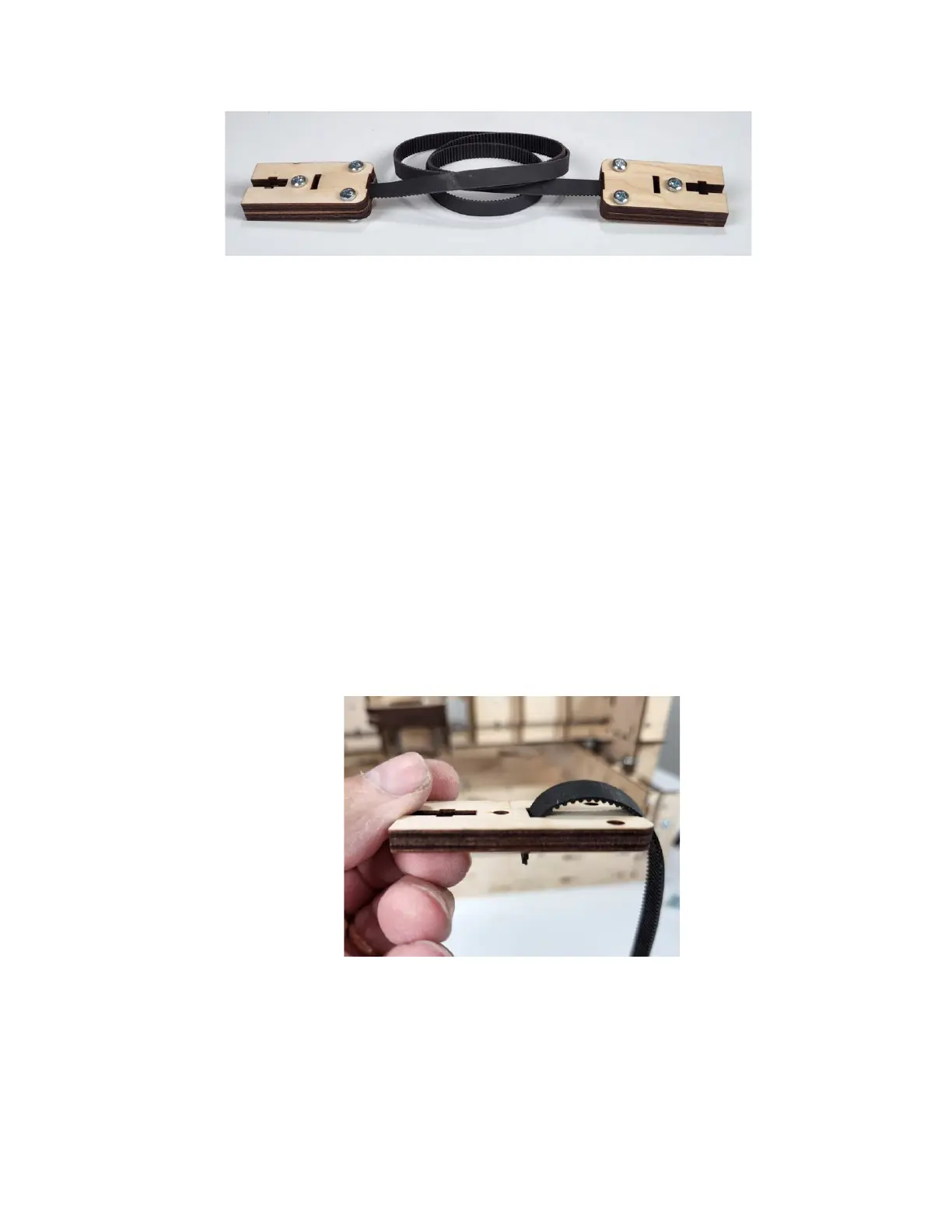

Step 3b With the teeth of the GT2 Belt facing down,

thread one end of the GT2 Belt through the

rectangular slot in a Belt Retainer.

There are four (QR3) XY Belt retainers used for each

of the 3 sets of the GT2 9mm Belt Assemblies.
