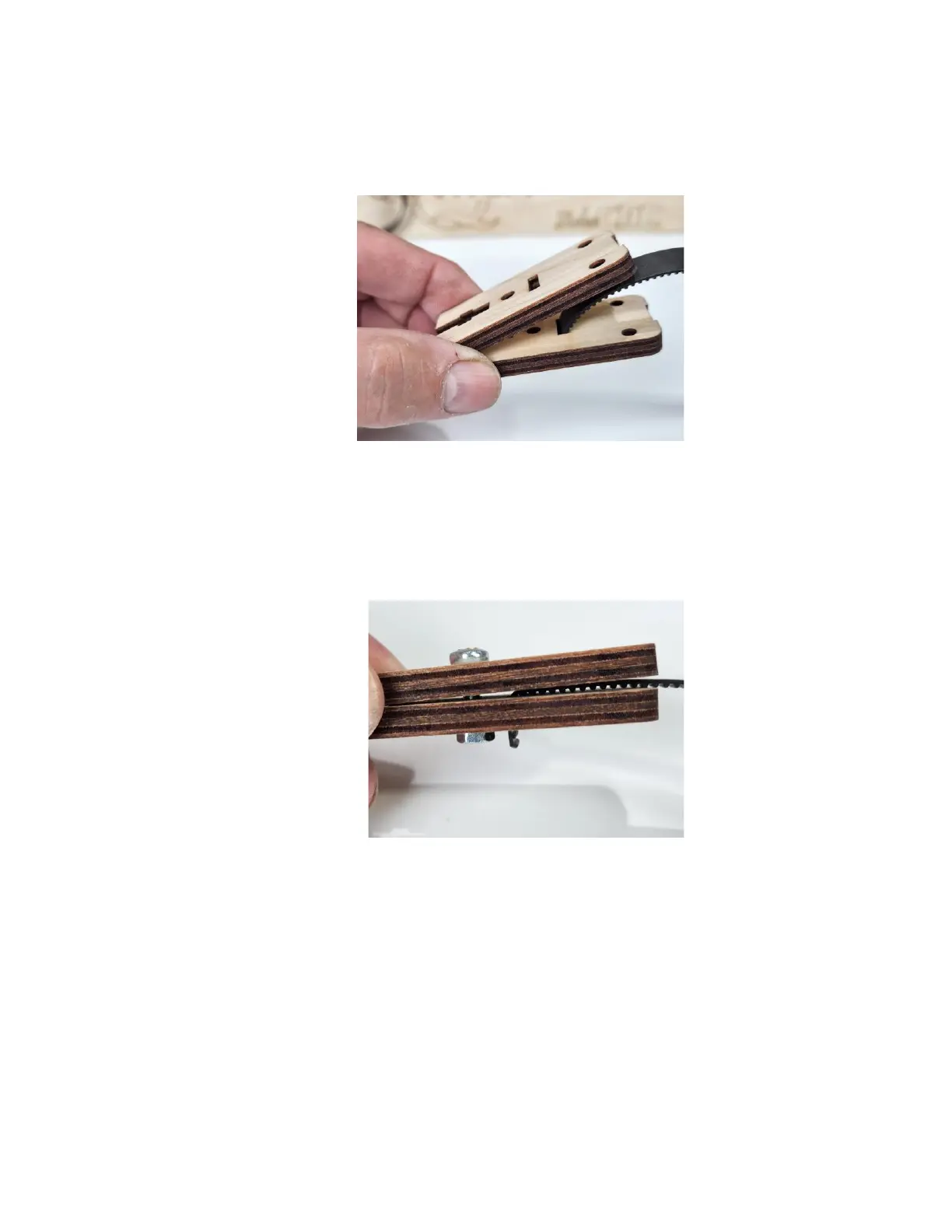

Step 3c Cover the Belt with the teeth still facing down
with the second Belt Retainer.
Step 3d Sandwich the GT2 Belt between the two Belt
Retainers and bolt them together with three
M4 x 16 Machine Screws and Nuts.
After installing the first Screw and Nut, it is
possible to adjust the amount of GT2 belt
installed through the bottom of the clamp by
gently pulling the GT2 belt until only two or
three of the teeth are visible. Then, insert the
remaining two M4 x 16 Machine Screws and
Nuts.
