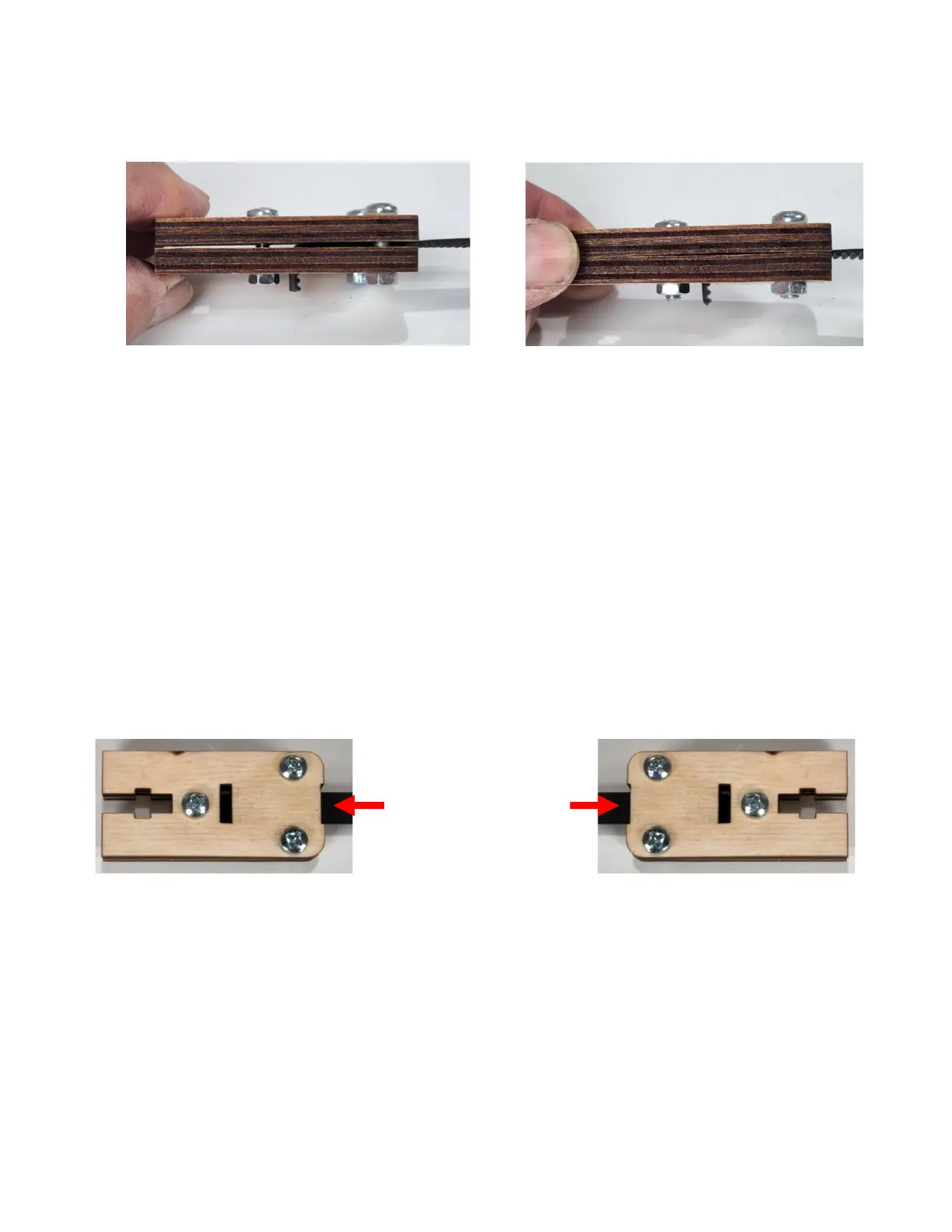

When properly installed and tight, there

shouldn’t be a visible gap between the two

Belt Retainers.

Step 3e Stretch the Belt Assembly out and measure

the distance between the two notched ends in

the Belt Retainers. The distance should be

57¼ inches for both X axis and 31 ¼ inches

for the Y axis.

Simply loosen the M4 x 16 Machine Screws

and Nuts and gently adjust the GT2 belt to the

correct length, as needed.

57¼ inches X

31¼ inches Y
