132

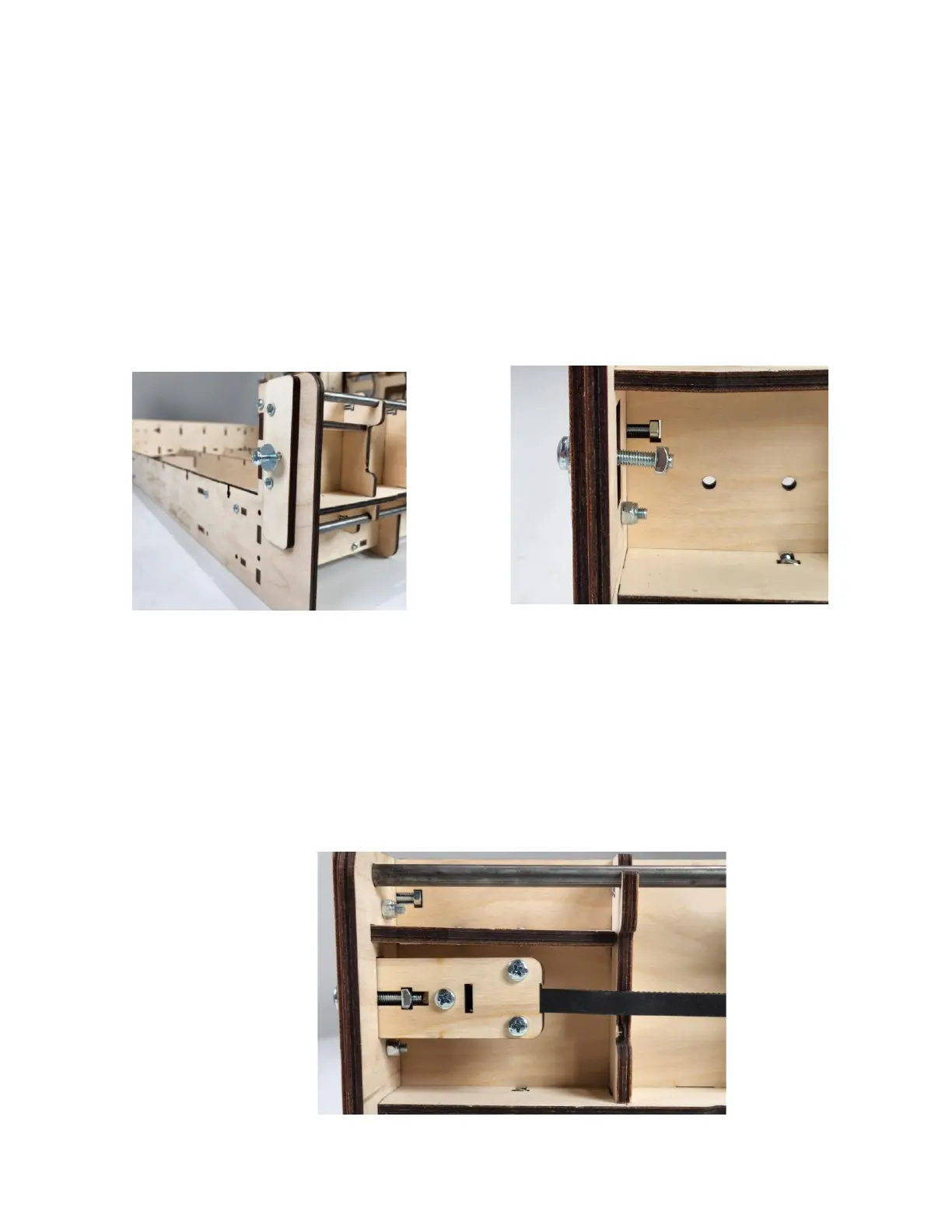

Step 3f Insert a M5 x 30 Machine Screw (H48) with a

Idler Fender Washer (H50) through the Rail

Stop mounted on the front Frame End

Support. Then thread a M5 Square Nut (H93)

on the exposed threads. Repeat for the rear

Frame End Support.

Step 3g Slip a Belt Retainer Assembly end over the

exposed thread so that the Square Nut is

seated in the cutout of the Belt Retainer

Assembly. Be sure the smooth side of the GT2

Belt is visible with the teeth oriented toward

the X Frame Assembly.
