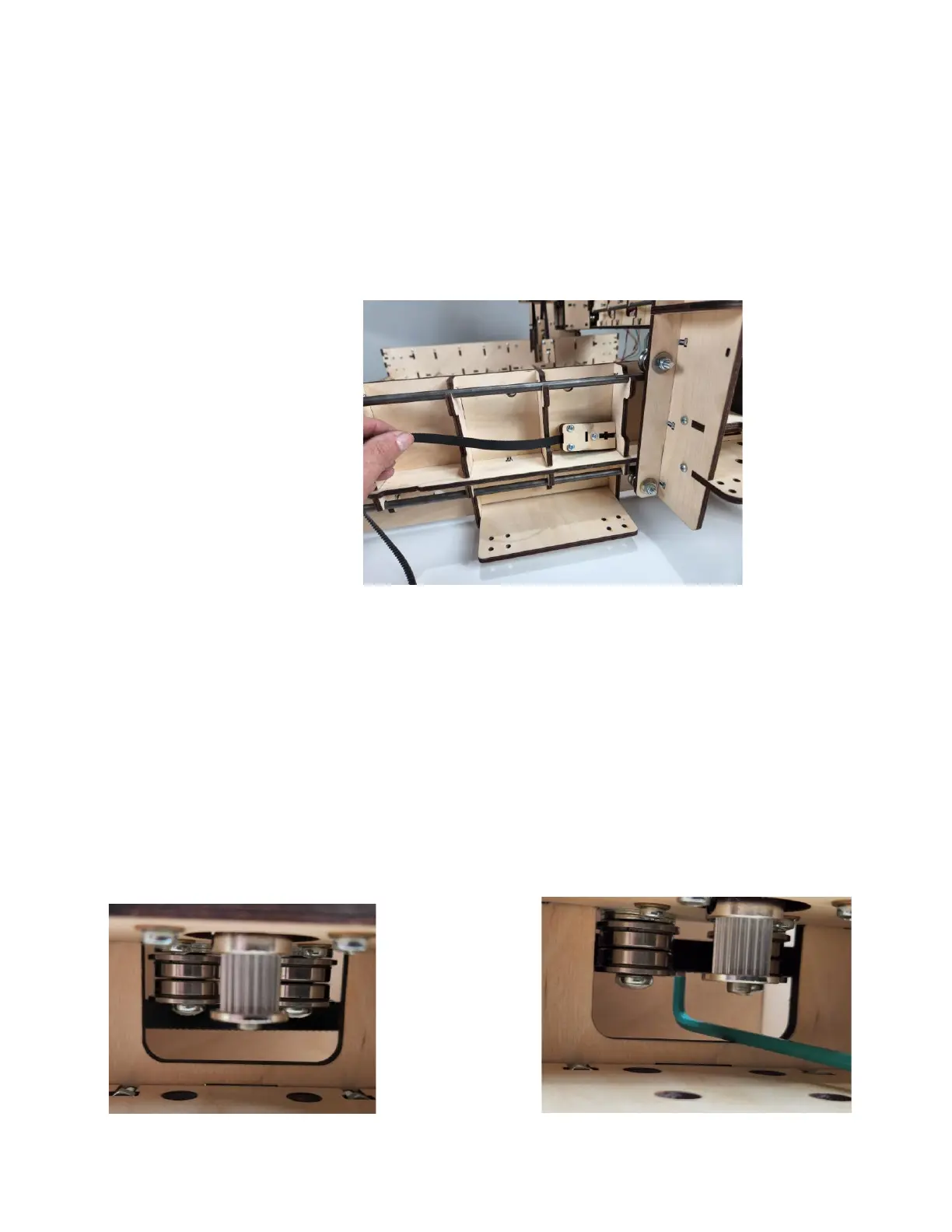

Step 3h Tuck the other Belt Retainer Assembly
between two Rail Supports as shown. Hold the
GT2 Belt in the notch in the Rail Support and
slide the Gantry Assembly past the Belt
Retainer Assembly.
Step 3i Pull the slack GT2 belt tight and notice its
location behind the GT2 Pulley and the Idler
Pulleys. Gently position the GT2 Belt behind
the Idler Pulleys. Using a long Allen wrench or
a stiff piece of wire (e.g., AWG 12 solid core
copper wire), bend a small hook into one end
of the wire. Slip the short end behind the Belt
and pull it between the Idler Pulleys and
create a loop, as shown.
